SAJ B2-5.0-HV1 User Manual

B2 Series Battery
11
12
3.3 Overview of Products
626
200
365
261
365
626

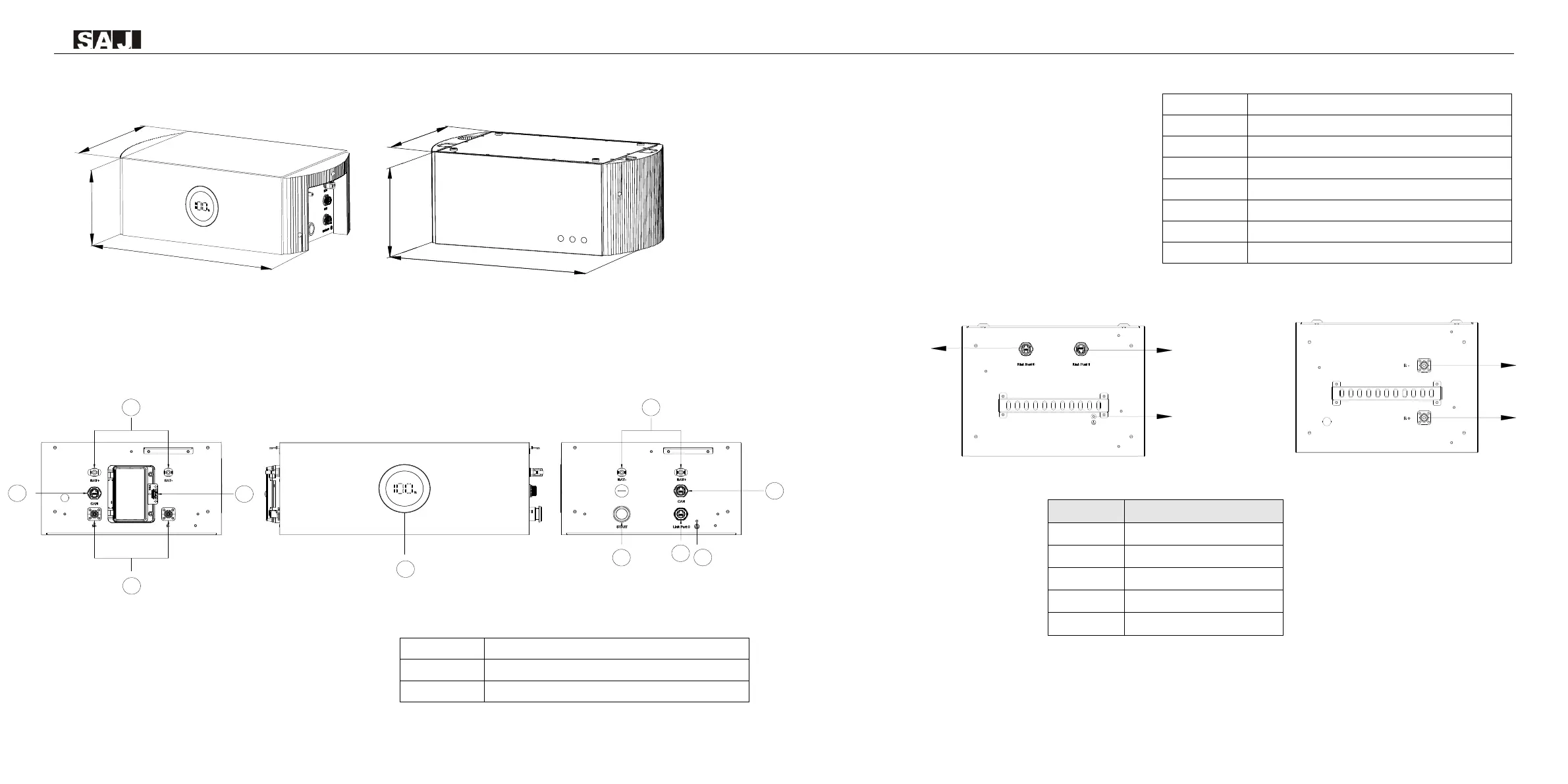

Figure 3.2
Dimensions of battery control unit and battery module
3.4 Battery Terminals Description
Figure 3.3 Battery control unit interface (left view and right view)
Position
Name
1
BAT +/BAT- port (to inverter)
2
Communication port (to inverter)
3
B+/B- port (to battery module)
4
Circuit breaker
5
Display
6
BAT+- port (for parallel connection)
7
Main switch
8
Communication port (to battery module)
9
Ground
10
Communication port (for parallel connection)
Table 3.1 Battery control unit interface
Figure 3.4 Battery module interface (left view & right view)
Code
Name
A
Link Port 0
B
Link port 1
C
Ground
D
B - port
E
B +port
Table 3.2 Battery module interface
1
3
2
4
5
6
7
8
9
10
A
B
C
D
E
