HS2/AS2 Series

Power cable*1

(150mm)

RJ 45 plug*1

COMM cable*1

Communication

module*1 (Optional)

The documents include the user manual and packaging list.

Battery Module Package

Battery module*1

Side cover*2

M4*25 screw*4

Power cable*2

COMM cable*1

Locking bracket*2

Grounding cable*1

M4*10 screw*4

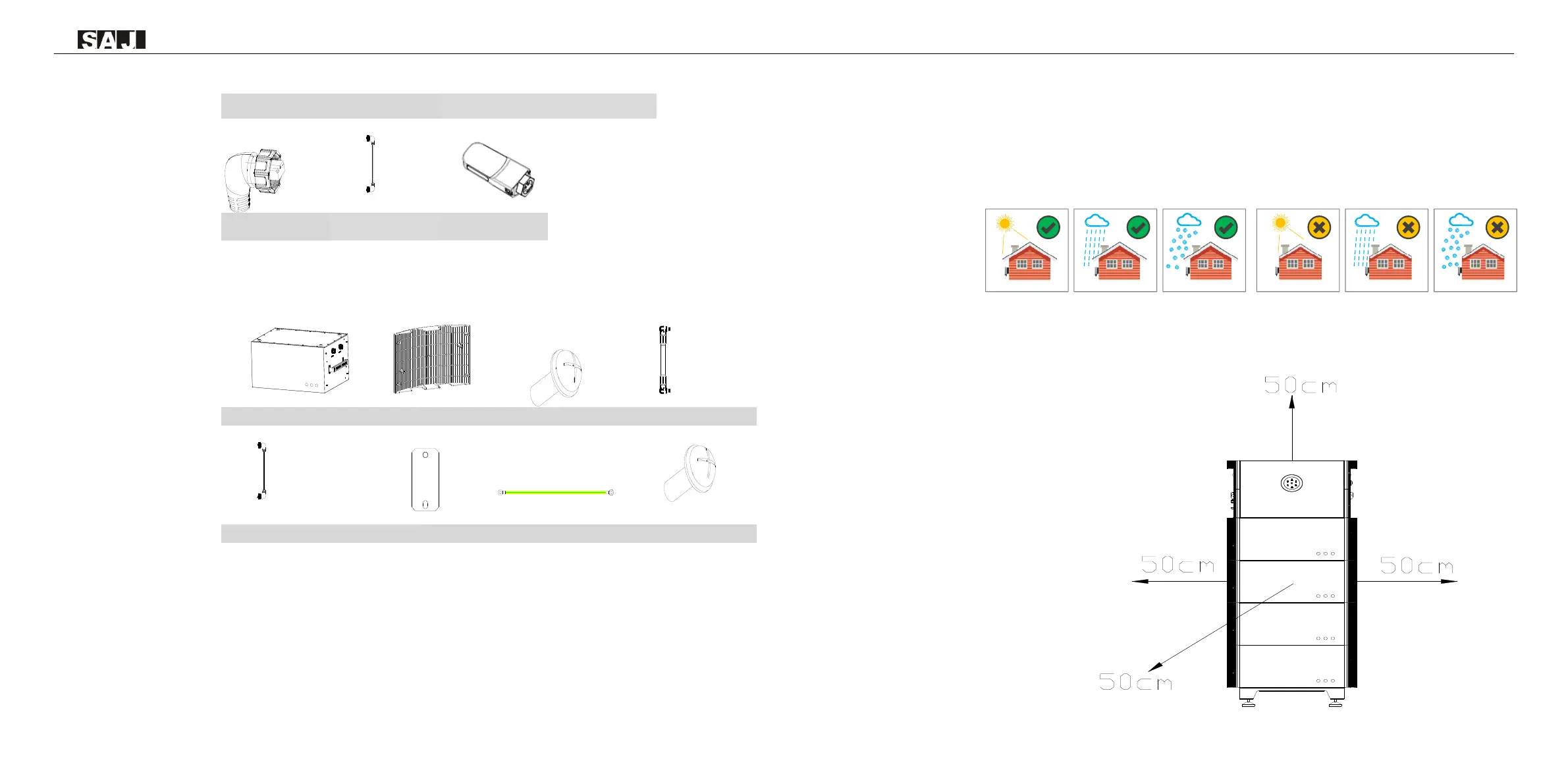

4.2 Installation Method and Position

4.2.1 Installation Position and Clearance

This device is cooled by natural convention and suggested an indoor installation or an installation under a

sheltered place to prevent the product from exposure to direct sunlight, rain and snow erosion.

Figure 4.1

Installation location

Please reserve enough clearance around the product to ensure a good air circulation at the installation area.

Because poor air ventilation will affect the working performance of internal electronic components and

shorten the service life of the system.

Figure 4.2

Installation clearance

Keep away from sunlight Keep dry Keep it clear of snow Sun Rain

Accmulated snow

SAJ HS2/AS2 Series User Manual
