HS2/AS2 Series
52

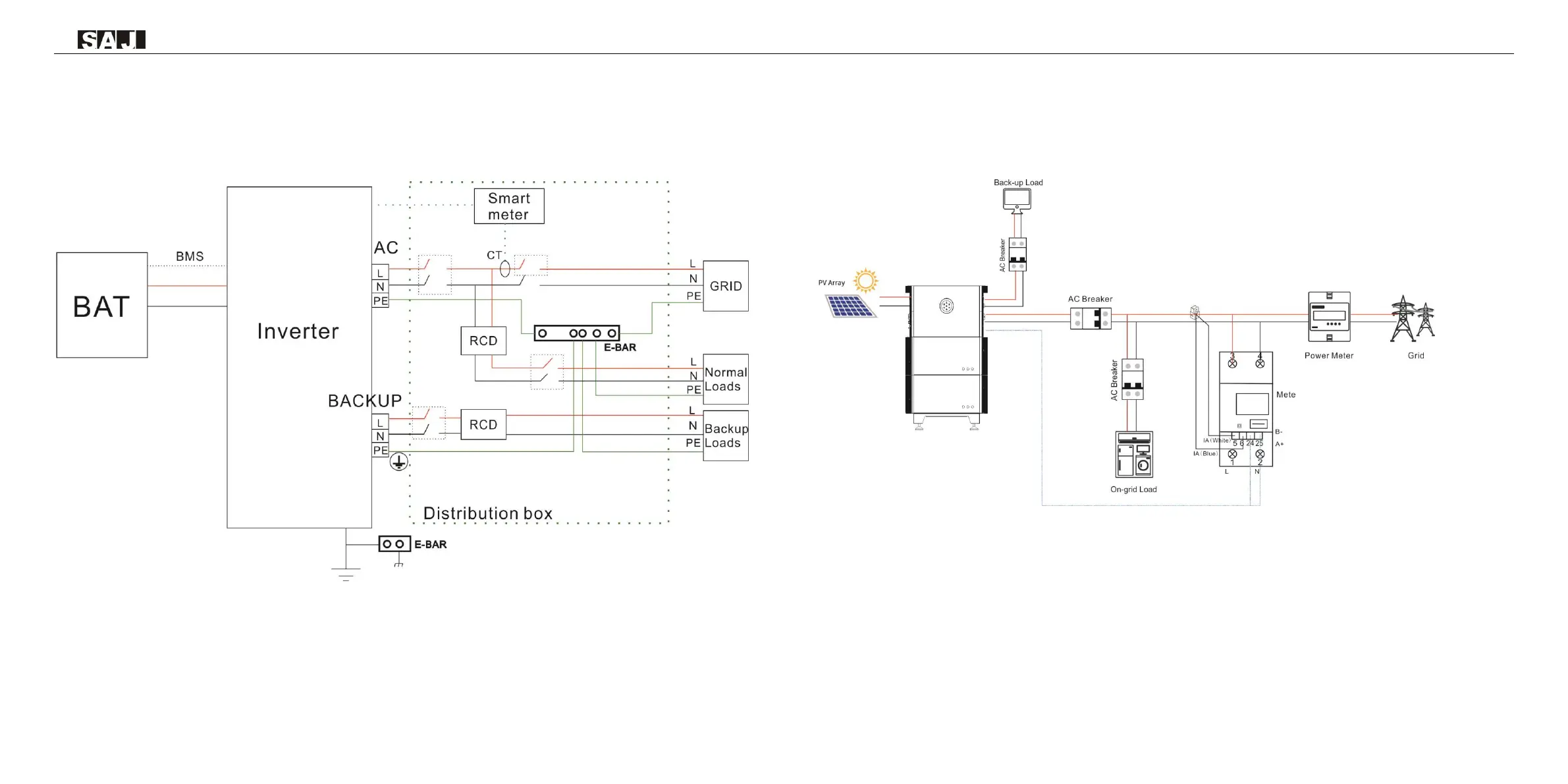

The system connection for grid system without special requirements is as below.
Note：The backup PE line and earthing bar must be grounded properly. Otherwise, backup function may be
inactive during blackout.
5.8 System Connection Diagram
HS2
