4.2.2 Mounting Method

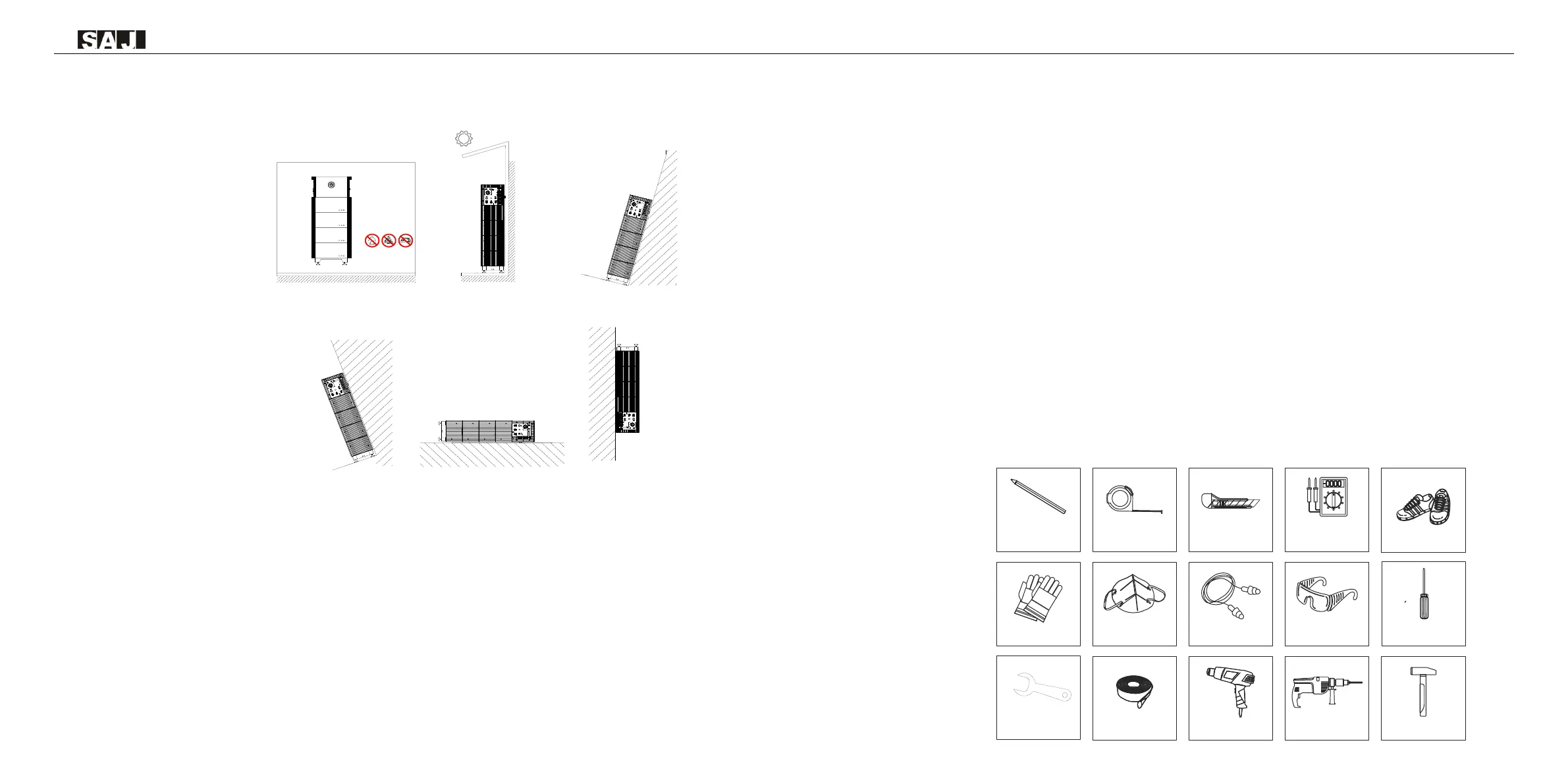

Figure 4.3
Mounting method
① The equipment employs natural convection cooling, and it can be installed indoor or outdoor.
⑤ Mount vertically. Never install the device tilted forwards, sideways, horizontally or upside down.
⑥ When mounting the device, please consider the solidity of wall for product, including accessories, make
sure the wall has enough strength to hold the screws and bear the weight of products. Please ensure the
mounting bracket mounted tightly.
Installation Environment Requirements
• The installation environment must be free of inflammable or explosive materials.
• Install the device away from heat source.
• Do not install the device at a place where the temperature changes extremely.
• Keep the device away from children.
• Do not install the device at daily working or living arears, including but not limited to the following areas:
bedroom, lounge, living room, study, toilet, bathroom, theater and attic.
• When installing the device at the garage, please keep it away from drive way.
• Keep the device from water sources such as taps, sewer pipes and sprinklers to prevent water seepage.
• The product is to be installed in a high traffic area where the fault is likely to be seen.
Note: When installing outdoors, the height of the device from the ground should be considered to prevent the
device from soaking in water. The specific height is determined by the site environment.
4.3 Mounting Procedure
4.3.1 Installation Tools
Installation tools include but are not limited to the following recommended ones. Please use other auxiliary
tools on site if necessary.
