Step 5: After the battery modules installation, mark the proper positions of inverter and drill holes (10mm in
diameter, 65mm in depth) on those positions by using the inverter as a template. Remove the rubber feet for
the top battery module before installing inverter.

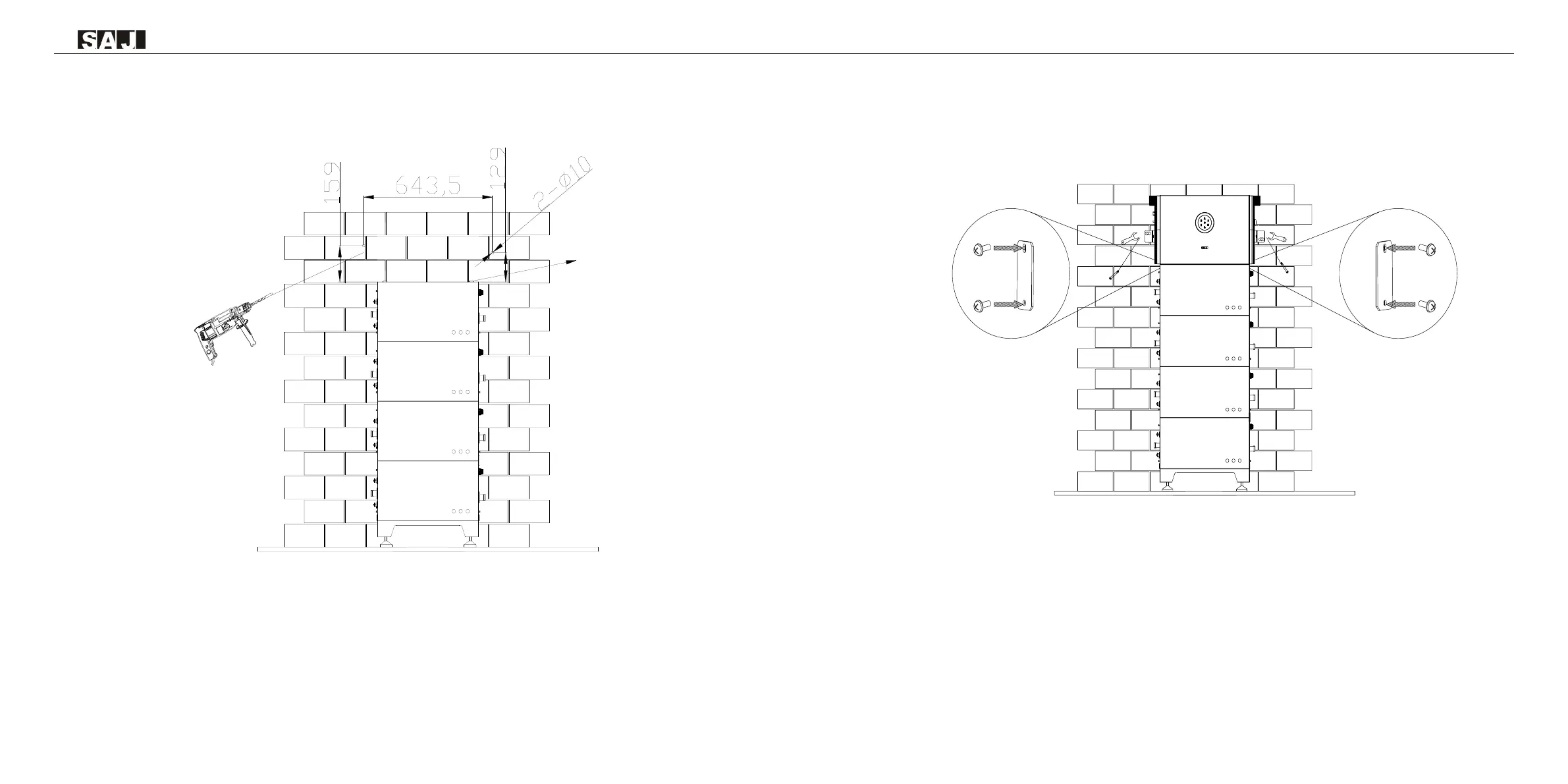

Figure 4.8
Drilling holes to install
inverter
Step 6: Use a rubber hammer to drive the screw fixing seat into the holes to fix the bracket，use the wrench to
tighten the screws (M8*80 screw) to secure the inverter. Secure the inverter and battery with locking brackets.
Figure 4.9
Installing inverter
