SAJ HS2 Series - Installation Method and Location

HS2/AS2 Series
19
20
RJ 45 plug*1
COMM cable*1
Communication
module*1 （Optional）
The documents include the user manual and packaging list.
Battery Module Package
Battery module*1
Side cover*2
M4*25 screw*4
Power cable*2
COMM cable*1
Locking bracket*2
Grounding cable*1
M4*10 screw*4

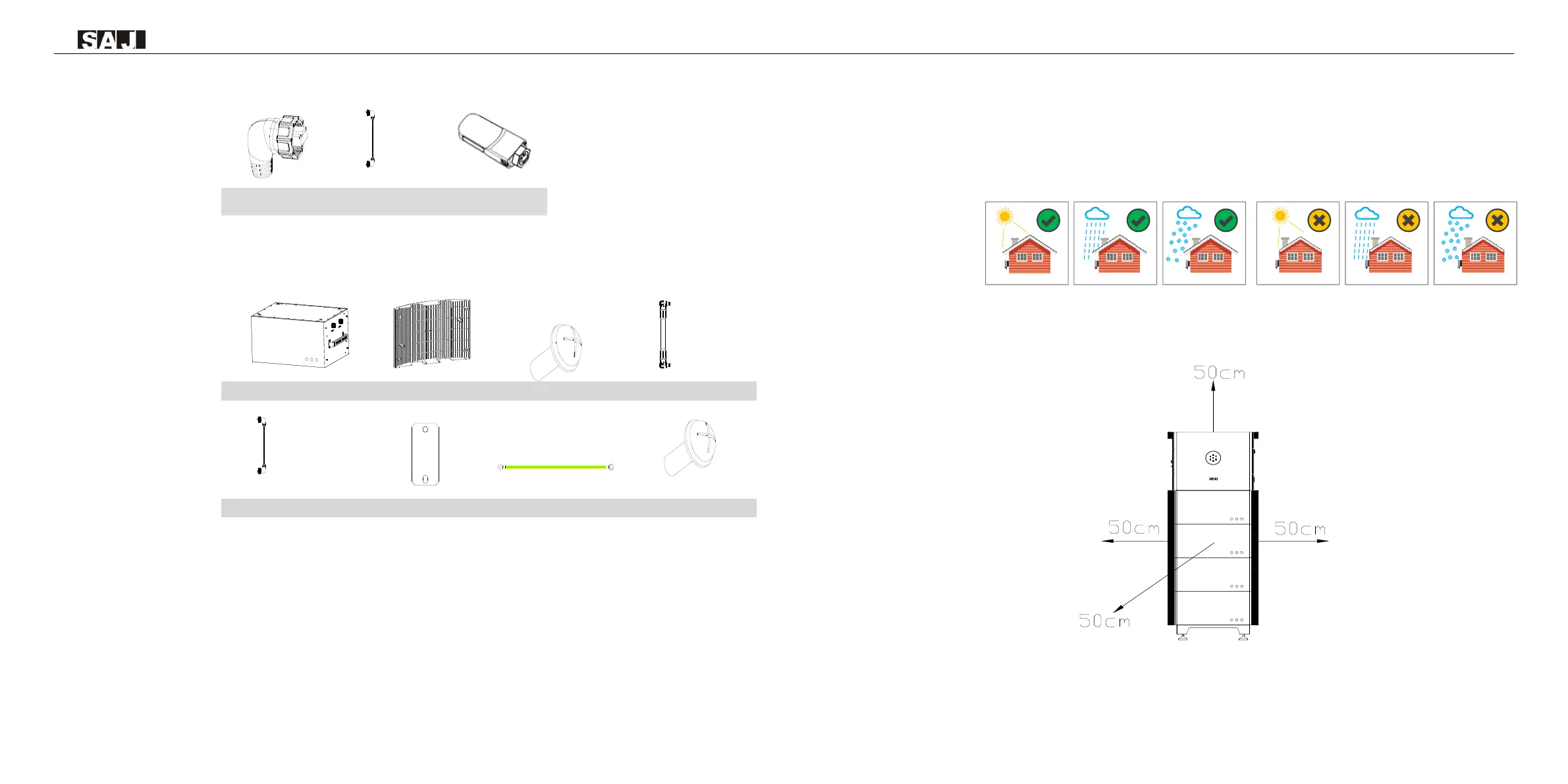

4.2 Installation Method and Position
4.2.1 Installation Position and Clearance
This device is cooled by natural convention and suggested an indoor installation or an installation under a
sheltered place to prevent the product from exposure to direct sunlight, rain and snow erosion.
Figure 4.1
Installation location
Please reserve enough clearance around the product to ensure a good air circulation at the installation area.
Because poor air ventilation will affect the working performance of internal electronic components and
shorten the service life of the system.
Figure 4.2
Installation clearance
Keep away from sunlight Keep dry Keep it clear of snow Sun Rain
Accmulated snow
