R5 Series
- 35 -
AC waterproof nut.
Figure 5.11 Tighten up AC interface protective cover and the locker
5.4 DC Side Connection
Cross-sectional area of cables（mm²）
Outside diameter of the cables
（mm）
Scope
Recommended value
4.0-6.0
4.0
4.2~5.3
Table 5.4 Recommended specifications of DC cables

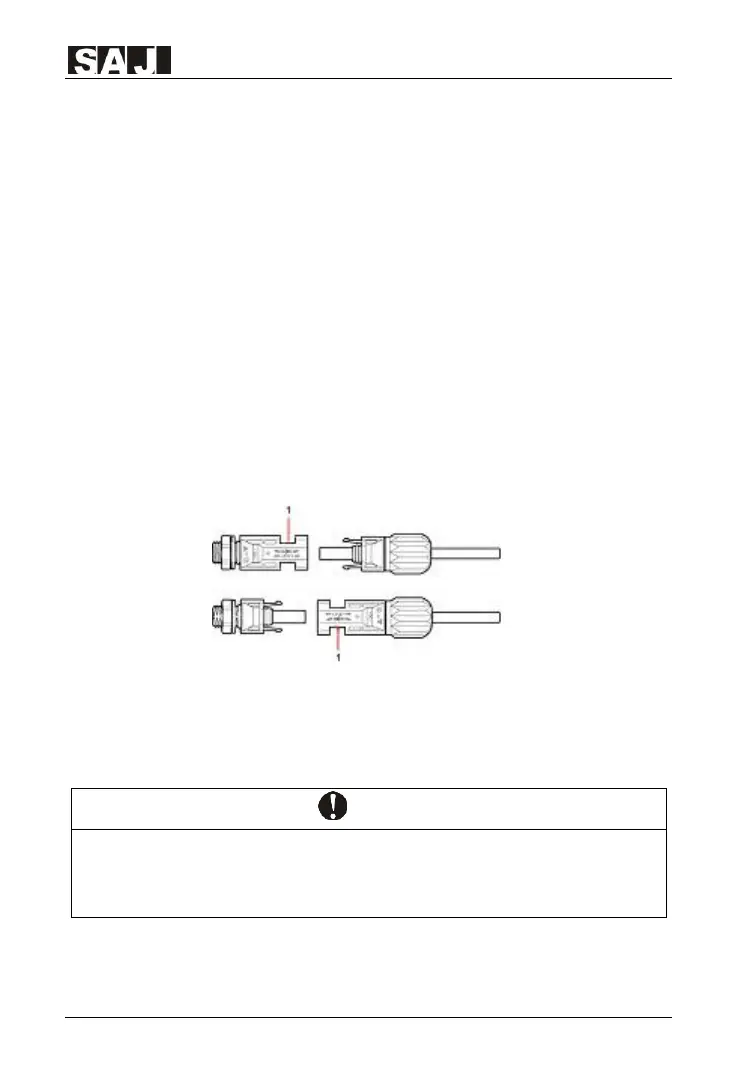

DC connector is made up of positive connector and the negative connector
1.
Figure 5.12 Positive connector
1. Insulated enclosure 2. Lock screw 3. Positive connector
