R5 Series
- 9 -
3.2 Specification for Product Model
R5 – XK – T2
① ② ③
① R5 represents for product name.
② XK represents rated power XkW of inverter, for example 4K means 4kW.
③ T means three phase; 2 represents the inverter has the function of dual MPPT.
3.3 Overview of products
The dimensions of R5 series products is shown in Figure 3.2 , Figure 3.3 & Figure
3.4.

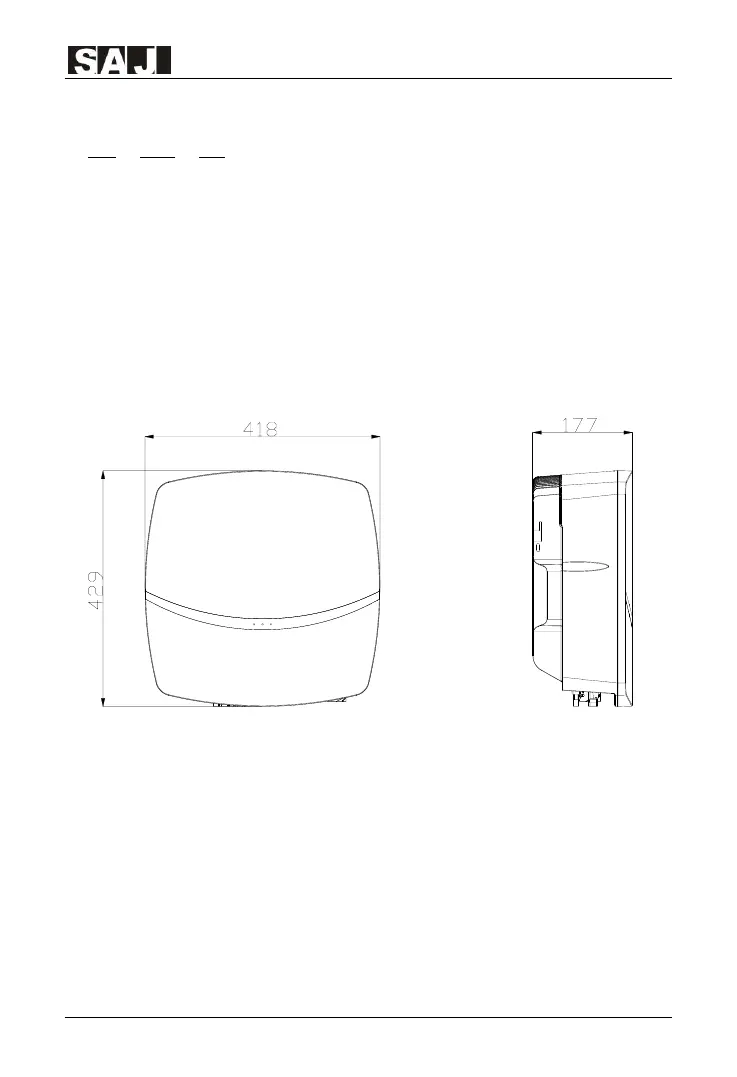

Figure 3.2 Dimensions of R5-3K/4K/5K/6K/8K/9K/10K/12K-T2
