5.2 Specifications for Electrical Interface

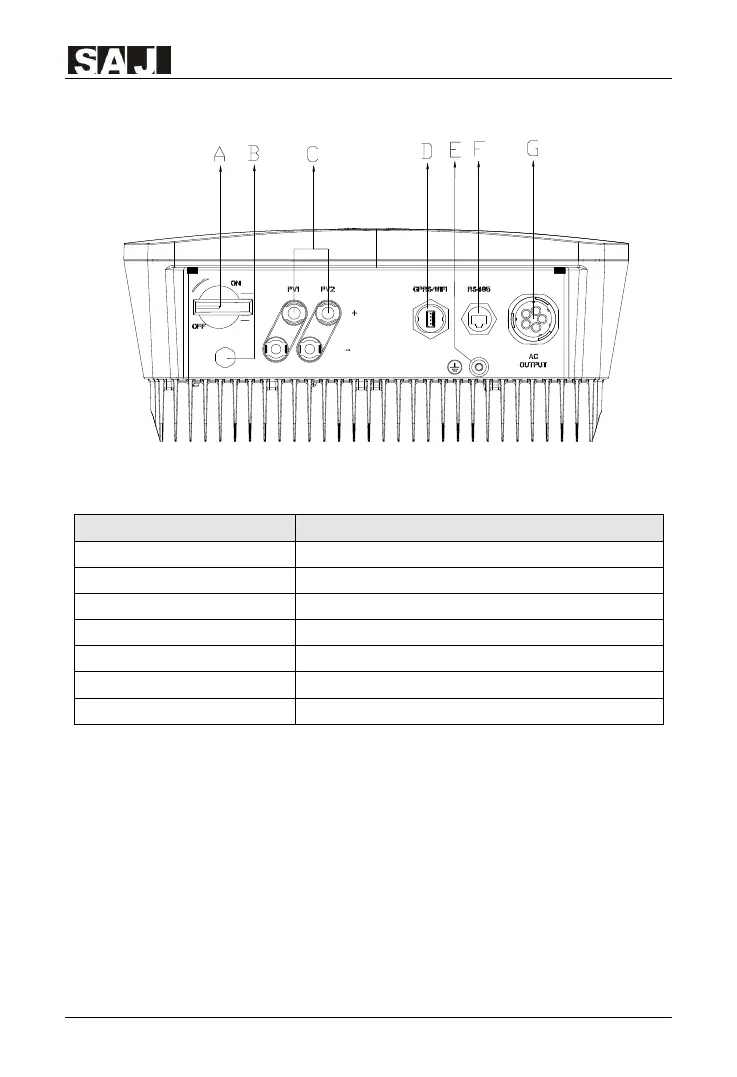

Figure 5.1 Electrical interface of R5-3K/4K/5K/6K/8K/9K/10K/12K-T2
Code
Name
A
DC Switch
B
Decompression Valves
C
DC Input
D
RS232 Communication (GPRS/ Wi-Fi /4G)
E
Ground Connection
F
RS485 Communication
G
AC Output
Table 5.1 Specifications for interface
