Fixed Reactive Power Mode
Step 1: Select Inductive Adjustment Var or Capacitive Var according to your local grid regulation. The power range is from
-60%Pn ~ 60%Pn.
6.3.2 Setup V-Watt and Volt-Var Mode
This inverter complies with AS/NZS 4777.2: 2020 for power quality response modes. The inverter satisfies different regions
of DNSPs' grid connection rules requirements for volt-watt and volt-var Settings. e.g.: AS4777 series setting as below Fig
6.4&6.5.

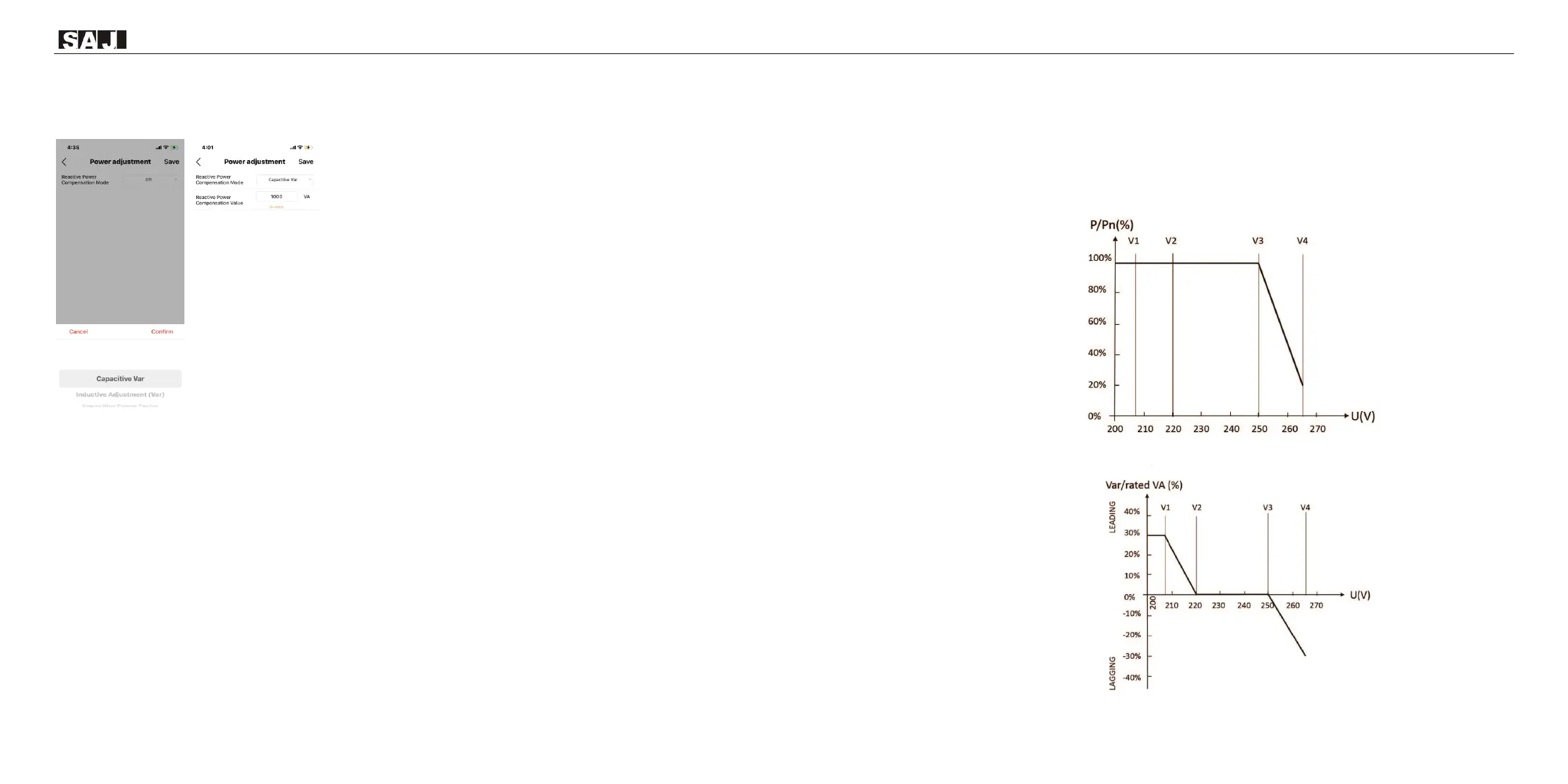

Figure 6.4
Curve for a Volt-Watt response mode (AS4777 Series)
Figure 6.5
Curve for a Volt-Var control mode (AS4777 Series)
