3.2 Specification for Product Model
R6 – XK – TX – 32 – LV
① ② ③ ○
4
○
5
① R6 represents for product name.
② XK represents rated power XkW of inverter, for example 4K means 4kW.
③ T means three phase; X represents the inverter has the function of X MPP
trackers.
○
4
32 means that max. DC input current of per MPP tracker is 32A.
○
5
LV means that nominal AC output voltage is 127V(F-N)/220V(F-F).
3.3 Overview of products
The dimensions of R6 series products is shown in Figure 3.2 , Figure 3.3 & Figure
3.4.

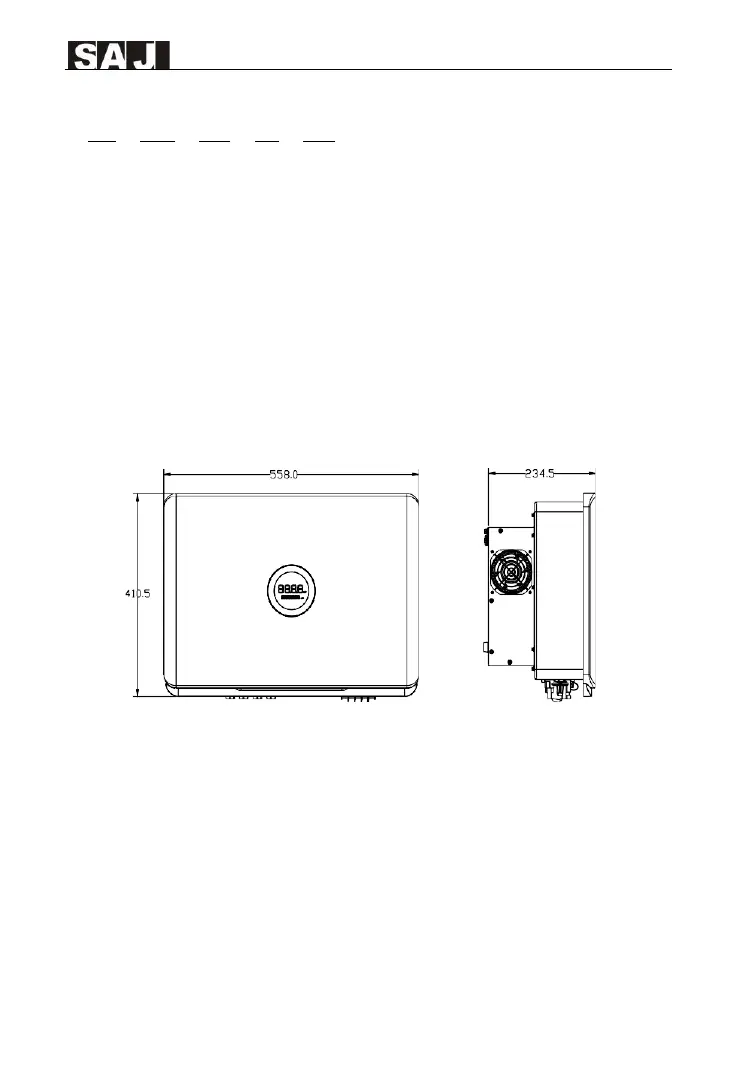

Figure 3.2 Dimensions of R6-15K/17K/20K/22K/25K-T2-32;
R6-5K/6K/8K/10K/15K-T2-32-LV
