Chapter 6 Debugging Instructions
6.1 Introduction of HMI (Human-Machine Interface)

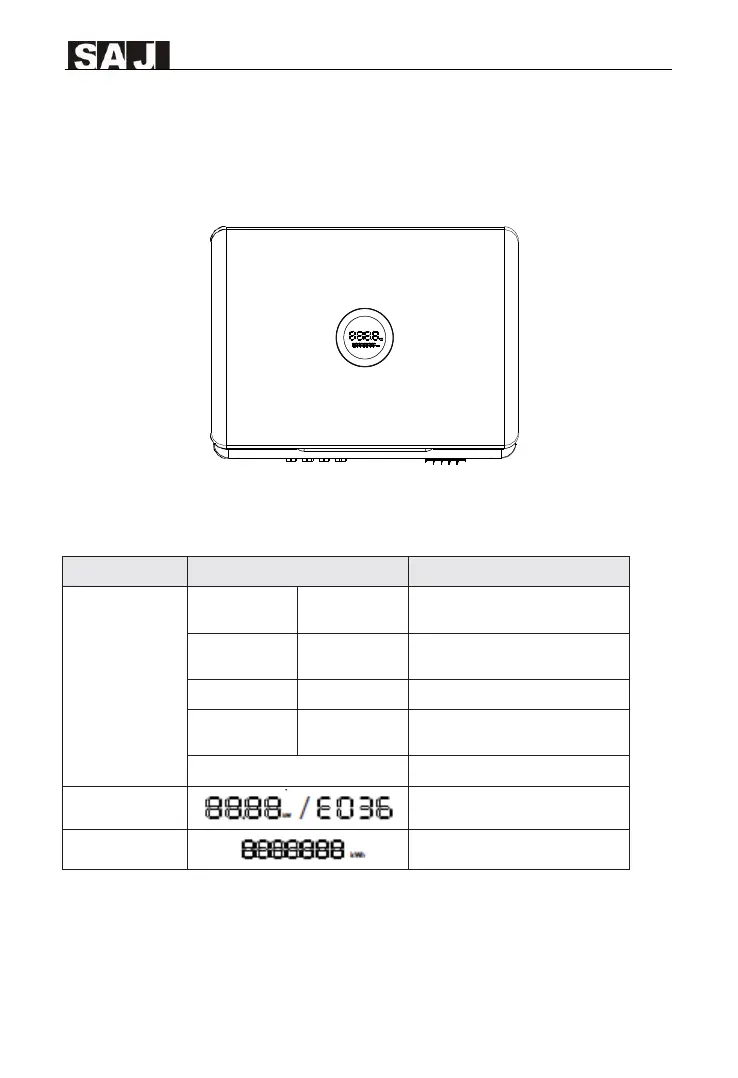

Figure 6.1 Human-Machine Interface
Display
Status
Description
Ring Light
Green
Solid green
The inverter is in normal
on-grid state
Green
Breathing
Mode
The inverter is in the
initialization or waiting state.
Red
Solid red
An error occurs
Red
Breathing
Mode
Software is upgrading in the
inverter.
OFF
Power off
LED Panel 1
Current output power (kW)
LED Panel 2
Total energy (kWh)
Table 6.1 Interface description
