R6 Series
- 26 -
4.4.4 Mount the Inverter
Carefully mount the inverter to the rear panel as shown in Figure 4.8 and 4.9, Make sure that
the rear part of the equipment is closely mounted to the rear panel.

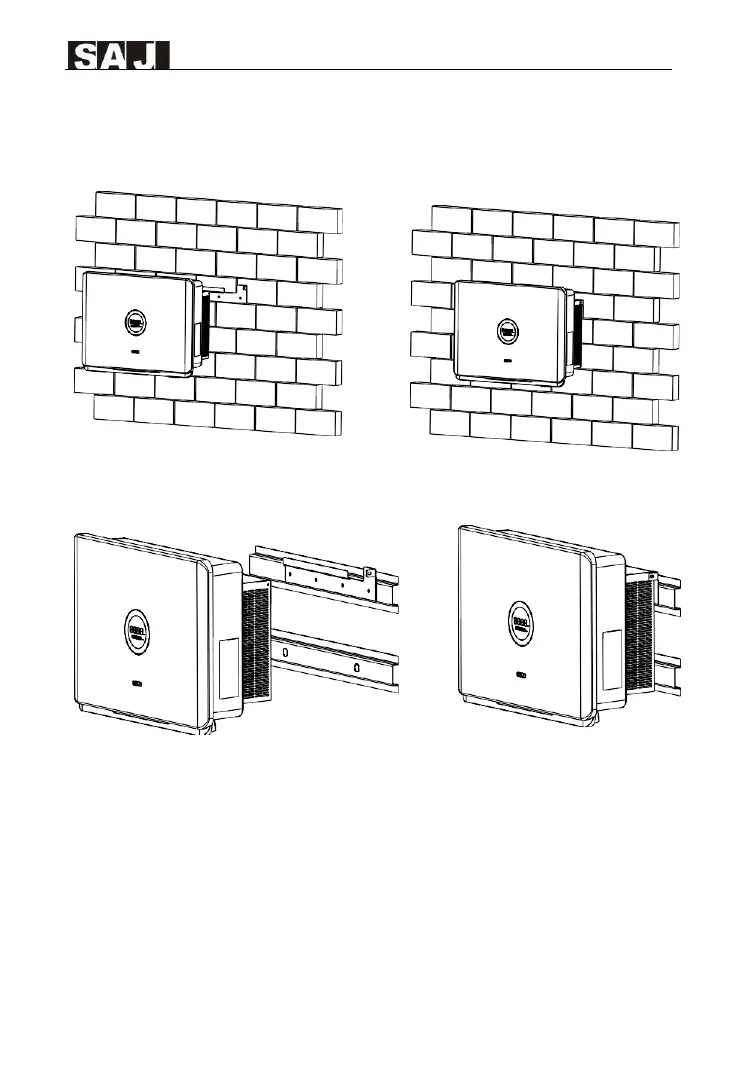

Figure 4.8 Mount inverter
