R6 Series
- 30 -

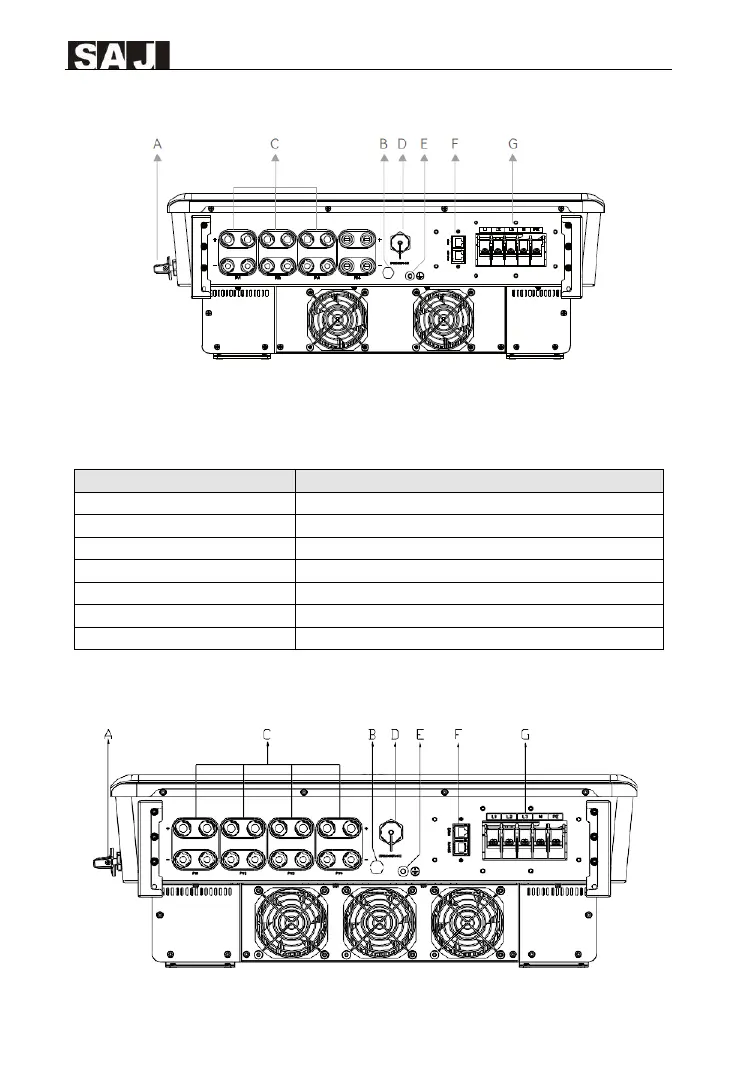

Figure 5.2 Electrical interface of R6-25K/30K/33K/36K-T3-32, R6-20K-T3-32-LV
Code
Name
A
DC Switch
B
Decompression Valves
C
DC Input
D
RS232 Communication (GPRS/ Wi-Fi /4G)
E
Ground Connection
F
RS485 Communication
G
Terminal Block
Table 5.2 Specifications for interface
