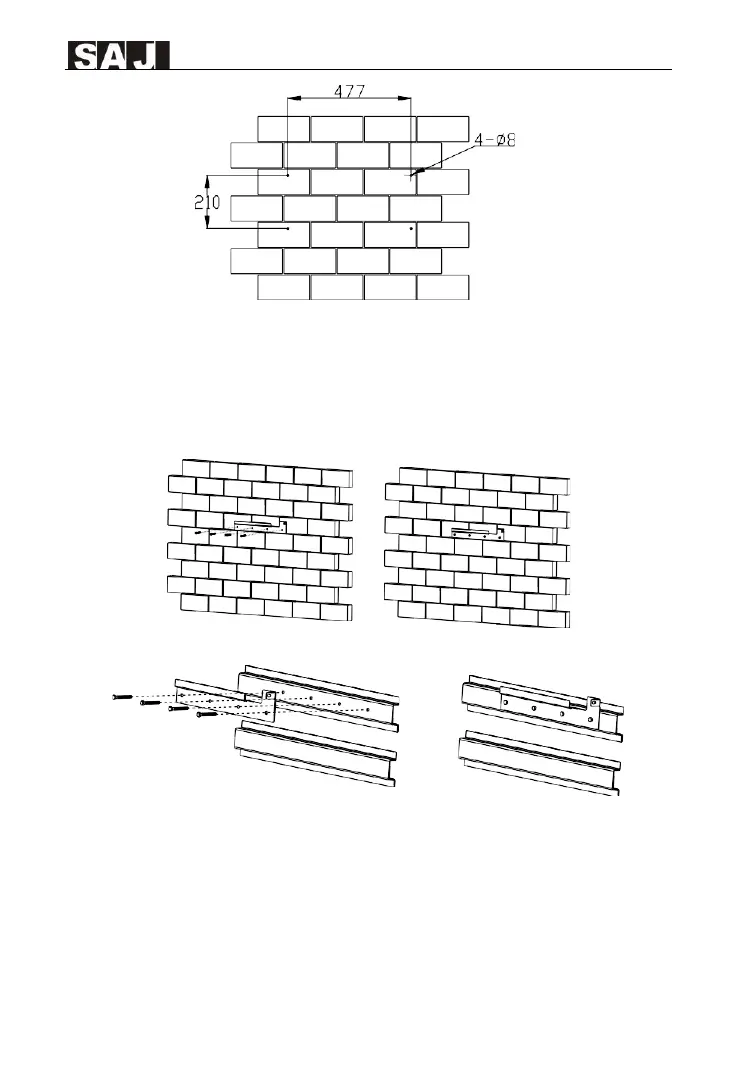

Figure 4.6 Drill holes’ dimensions of R6-30K/33K/36K-T3-32, R6-20K-T3-32-LV,
R6-36K/40K/50K-T4-32, R6-25K/30K-T4-32-LV
4.4.3 Mount the Screws and the Rear Panel
The panels should be mounted in the mounting position by screws as shown in Figure 4.7.
Figure 4.7 Mount the rear panel
