SAJ R6-40K-T4-32 User Manual

R6 Series
- 39 -
Chapter 6 Debugging Instructions
6.1 Introduction of HMI (Human-Machine Interface)

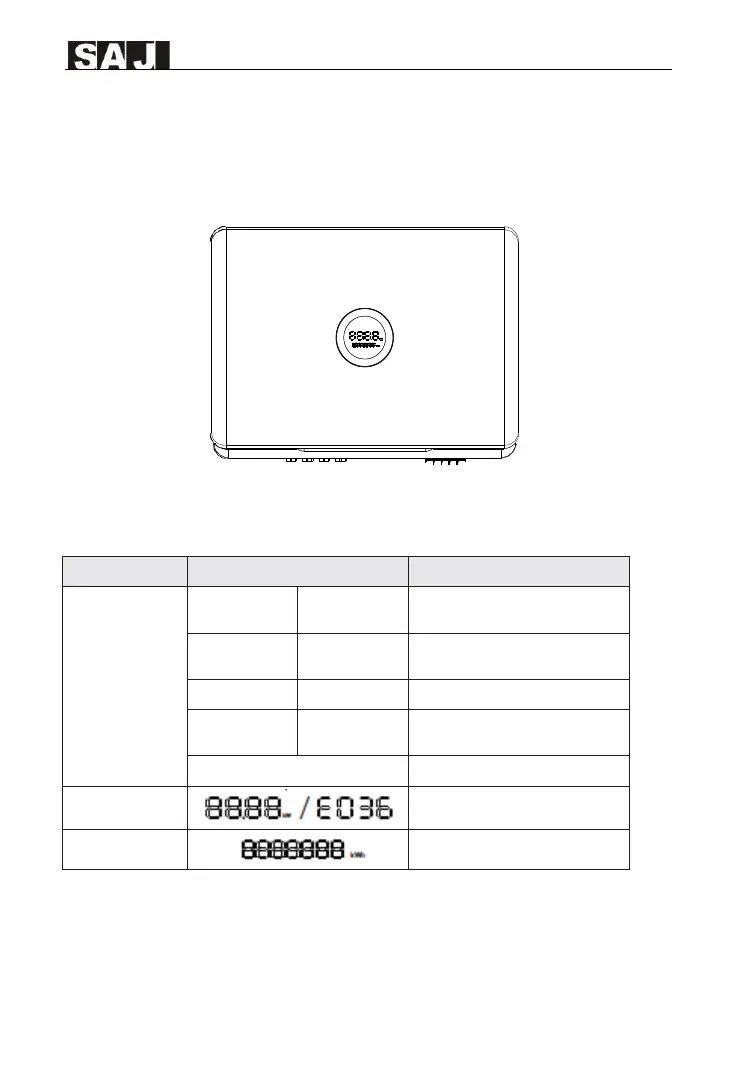

Figure 6.1 Human-Machine Interface
Display
Status
Description
Ring Light
Green
Solid green
The inverter is in normal
on-grid state
Green
Breathing
Mode
The inverter is in the
initialization or waiting state.
Red
Solid red
An error occurs
Red
Breathing
Mode
Software is upgrading in the
inverter.
OFF
Power off
LED Panel 1
Current output power (kW)
LED Panel 2
Total energy (kWh)
Table 6.1 Interface description

SAJ R6-40K-T4-32 Specifications

General

Max. DC Input Voltage	1100 V
Start Voltage	200 V
MPPT Voltage Range	200-1000 V
Rated AC Output Power	40000 W
Max. AC Apparent Power	44000 VA
Rated AC Voltage	400 V
THDI	<3%
AC Grid Frequency	50/60 Hz
MPPT Efficiency	99.9%
DC Connection	MC4
Protection Degree	IP65
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural convection
Weight	55 kg
Number of MPP Trackers	4
Maximum Input Current per MPPT	26 A
AC Output Rated Voltage	400 V
Protection Level	IP65
Max. DC Input Power	60000 W
Power Factor	0.8 leading to 0.8 lagging
Maximum PV Input Power	60000 W
Humidity Range	0-100%
Communication	RS485, Ethernet, Wi-Fi
