SAJ R6-40K-T4-32 - Communication Connection

R6 Series
- 36 -
1. Connection port

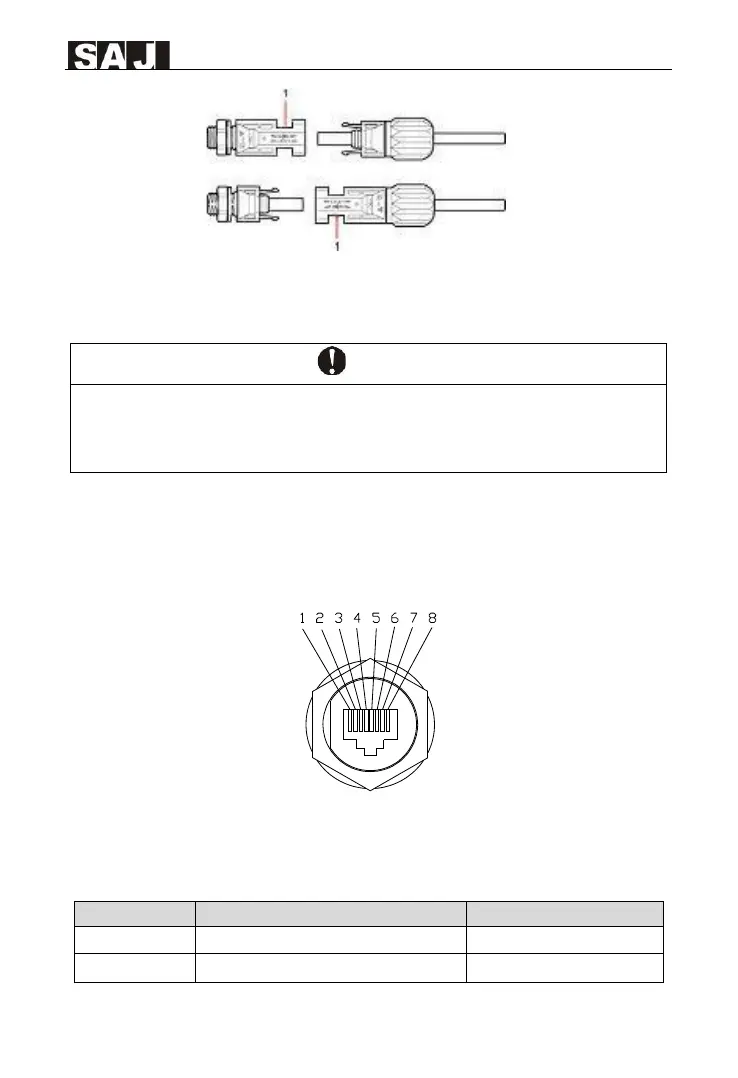

Figure 5.9 Connect the inverter
5.5 Communication Connection
R6 inverter is standardly equipped with a RS485 interface and a RS232 interface.
Figure 5.10 RS485 pin
Pin Number
Description
Function
1
NC
2
GND_W
Ground wire
NOTICE
· Before inserting the connector into DC input terminal of the inverter, please make su re that
the DC switch of the inverter is OFF.
·Please use the original terminal to install.
