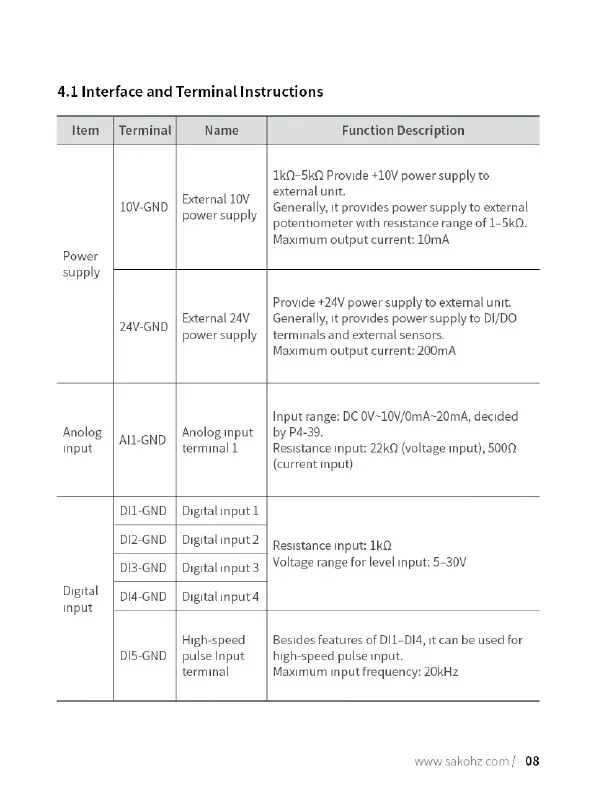

4.1 Interface and Terminal Instructions
Item | Terminal Name Function Description
1kO~5kQ Provide +10V power supply to
External 10V external unit.
10V-GND ower suppl Generally, it provides power supply to external
P PRY potentiometer with resistance range of 1-5kQ.
Maximum output current: LOmA
Power
supply
Provide +24V power supply to external unit.
External 24V | Generally, it provides power supply to DI/DO
24V-GND
power supply | terminals and external sensors.
Maximum output current: 200mA
Input range: DC OV~10V/OmA~20mA, decided
Anolog Anolog input | by P4-39.
Input pUOND terminal 1 Resistance input: 22kQ (voltage input), 5000
(current input)
DI1-GND | Digital input 1
DI2-GND | Digital input 2 Resistance input: 1kQ
DI3-GND | Digital input 3 Voltage range for level input: 5-30V
Digital | pi4-GND Digital input 4
input
High-speed Besides features of DI1-DI4, it can be used for
DI5-GND | pulse Input high-speed pulse input.
terminal Maximum input frequency: 20kHz
