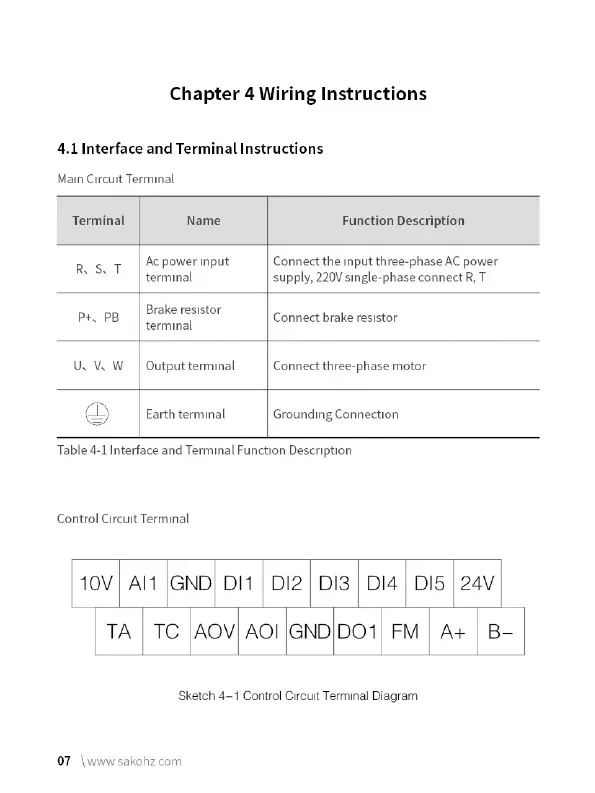

Chapter 4 Wiring Instructions
4.1 Interface and Terminal Instructions
Main Circuit Terminal
Terminal Name Function Description
RST Ac power Input Connect the input three-phase AC power
“" terminal supply, 220V single-phase connect R, T
P+, PB Pian les etor Connect brake resistor
terminal
U,V. W | Output terminal Connect three-phase motor
© Earth terminal Grounding Connection
Table 4-1 Interface and Terminal Function Description
Control Circuit Terminal
10V Alt |GND) DI1 Dl2 | DIS | Dl4 | DIS | 24V
| TA | TC Aov AOl |ano Do FM | A+
|
Sketch 4-1 Control Circuit Terminal Diagram
