Salus iT600 Series User Manual

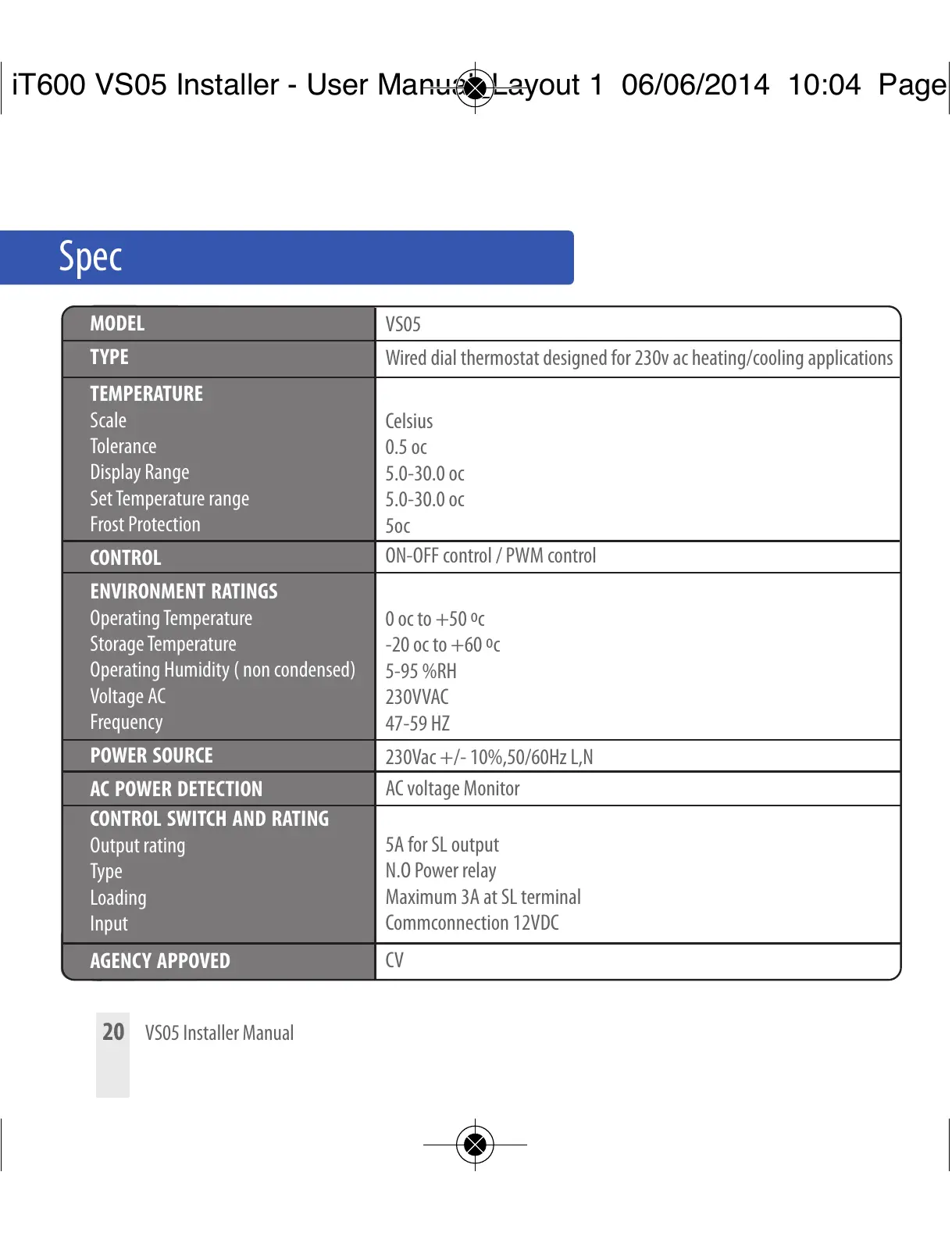

Spec
20 VS05 Installer Manual
MODEL
TYPE
TEMPERATURE
Scale
Tolerance
Display Range
Set Temperature range
Frost Protection
CONTROL
ENVIRONMENT RATINGS
Operating Temperature
Storage Temperature
Operating Humidity ( non condensed)
Voltage AC
Frequency
POWER SOURCE
AC POWER DETECTION
CONTROL SWITCH AND RATING
Output rating
Type
Loading
Input
AGENCY APPOVED
VS05
Wired dial thermostat designed for 230v ac heating/cooling applications
Celsius
0.5 oc
5.0-30.0 oc
5.0-30.0 oc
5oc
ON-OFF control / PWM control
0 oc to +50
o
c
-20 oc to +60
o
c
5-95 %RH
230VVAC
47-59 HZ
230Vac +/- 10%,50/60Hz L,N
AC voltage Monitor
5A for SL output
N.O Power relay
Maximum 3A at SL terminal
Commconnection 12VDC
CV
iT600 VS05 Installer - User Manual_Layout 1 06/06/2014 10:04 Page 20
All manuals and user guides at all-guides.com

Salus iT600 Series Specifications

General

Type	Smart Thermostat
Mounting	Wall-mounted
Connectivity	ZigBee
Control Method	App
Display	LCD
Programmable	Yes
Energy Monitoring	Yes
