12. DIAGRAM OF CONNECTIONS
See below diagram of connections for PCSol 150 controller. Details of connecting to individual ports are
presented in sections 12.1.2÷12.1.3
Presented hydraulic diagram will not replace
central heating technical design and may be
used only for informative purposes.
Collector and hot water reservoir must be
installed in accordance with local regulations
and their manufacturers’ instructions.
12.1. Basic diagram of connections

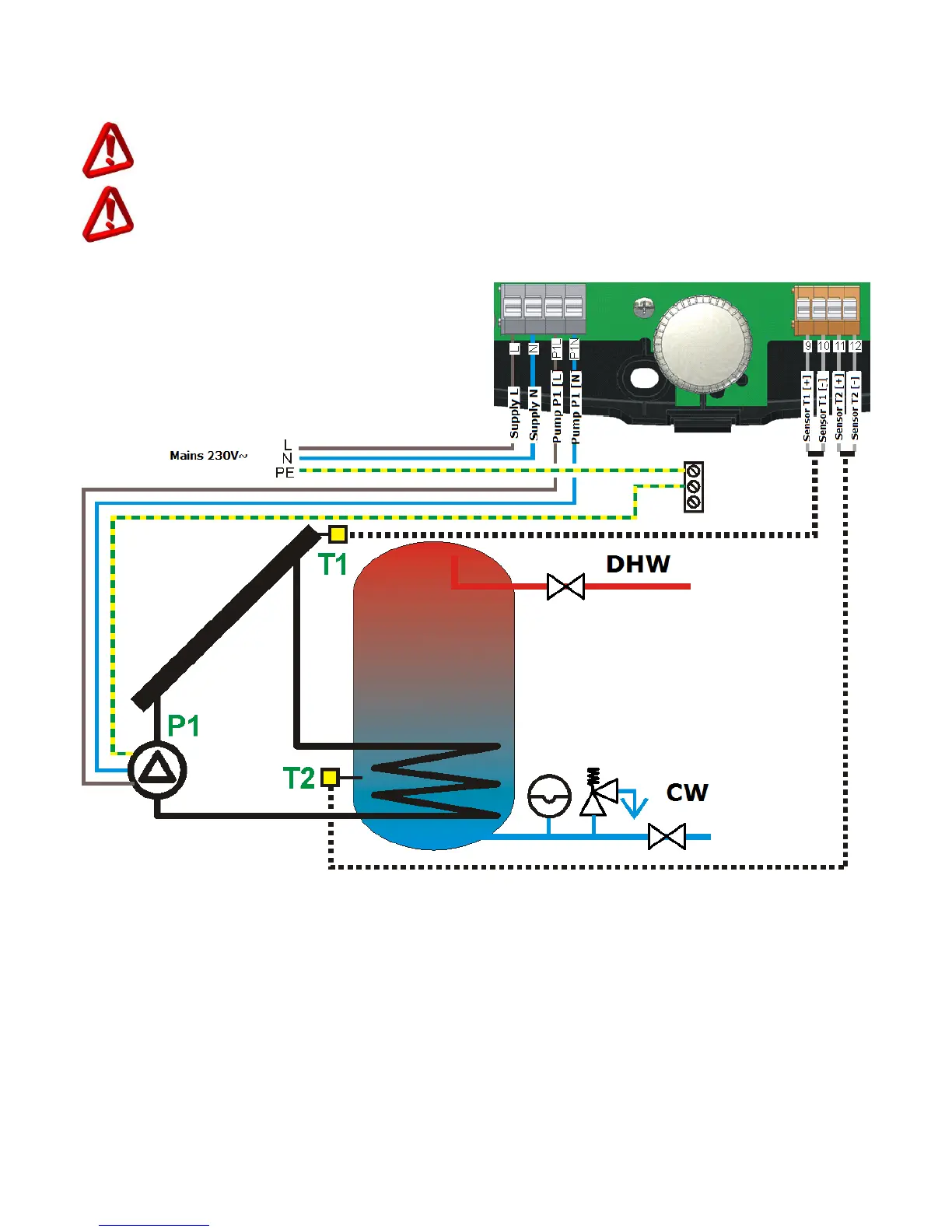

Fig. 12.1 Diagram of connections
