Before you start:
Charging to full battery level may take up to
24h maximum.
New SQ610RF Quantum Thermostat is partially
charged, however, we recommend you to fully
charge the battery before use.
Connect charger to micro-USB Port which is at
the bottom of SQ610RF Quantum Thermostat to
charge the device.

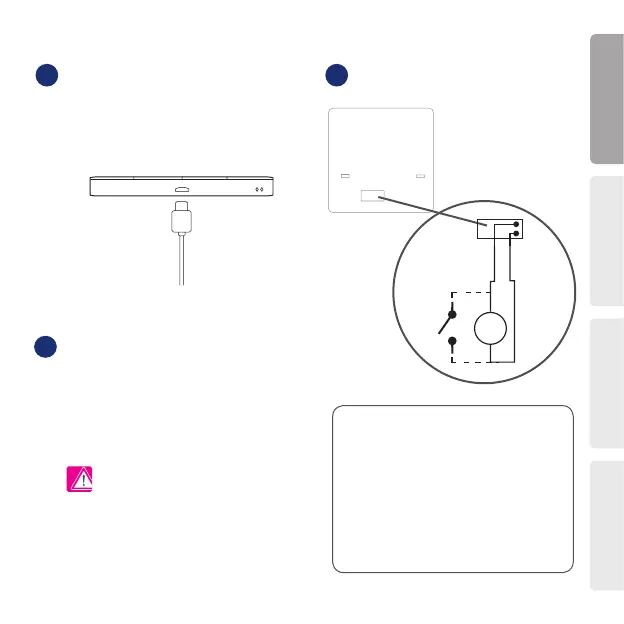

Wiring diagram (S1, S2 Input)
Symbols explanation:
S – volt-free contact
T – temperature sensor
S1,S2 Terminals:
- air or oor temperature sensor
- external volt-free contact to connect any ON/
OFF switch or occupancy sensor (Hotel card)
Mounting: to mount thermostat you can use
included accesories (mounting screws or self-
adhesive tape). Remove back cover to mount the
plate to the wall. After this just attach thermostat
to the plate (it has built-in magnet).
Please note:
The ideal position to thermostat mounting is about
1,5m under oor level far from heating or cooling
sources. Thermostat can’t be exposed to sunlight
or any extreme conditions like for example draft.
1 2
3
S1
S2
T
S
To Next Page
