RT300RF INSTRUCTION MANUAL
11

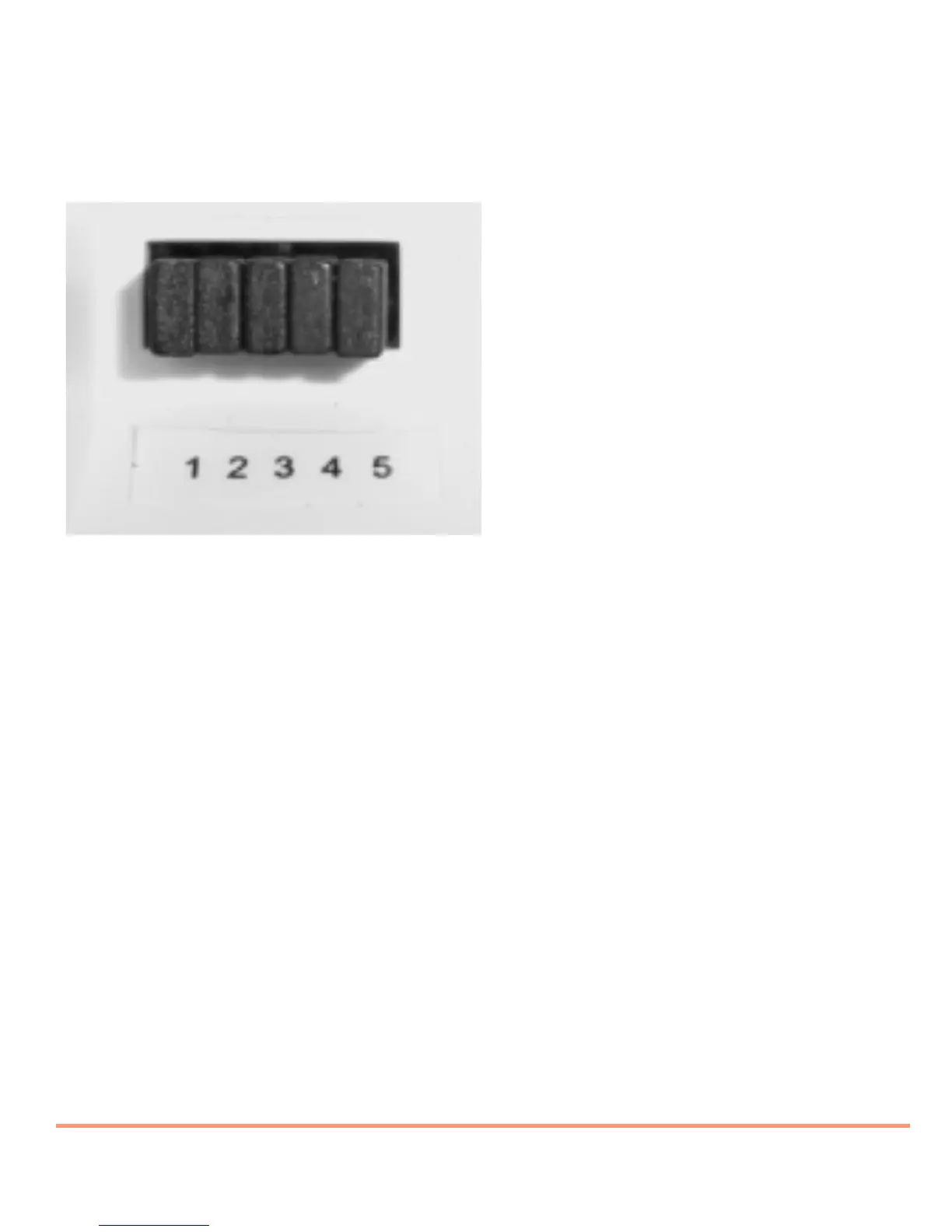

To adjust the RF address code of the Control Centre, remove one or more of
the jumper caps located on the back of the unit (labelled 1,2,3,4 and 5, and
shown in the picture below) so that the jumper settings match the settings
made on the receiver:
For example, if the DIP switches on the Receiver were set as follows:
1-ON
2 - OFF
3 - OFF
4 - OFF
5-ON
Then you would need to remove jumper caps 2,3 and 4 on the Control
Centre to make sure that they are both set with the same RF address code.
Please make sure that you keep any of the jumper caps you remove in a safe
place, in case you later need to change the RF address setting again.
You must press RESET on the Control Centre after making any changes to
the RF address code settings.
Salus RT300RF Manual 002_89 22/07/2013 09:19 Page 11

Salus RT300RF Specifications

General

Frequency	868 MHz
Power Supply	2 x AA batteries
Display	LCD
Control Mode	On/Off
Programmable	Yes
Frost Protection	Yes
Type	Wireless
Mounting	Wall-mounted
Communication	Wireless
Range	30m
Compatibility	Boilers
Weight	150g
Temperature Range	5°C to 35°C
