Mounting the RF Integral Boiler
Control to the boiler
DANGER!
• 24V & 230V: Do not Touch Electrical Components or circuits
• Isolate mains electricity supply before starting any work
and observe all relevant safety precautions.
• Follow electro static discharge precaution.
Do not touch any visible PCB parts or components.
1.Switch off the boiler at its main supply.
2.Remove cover panel or existing control.

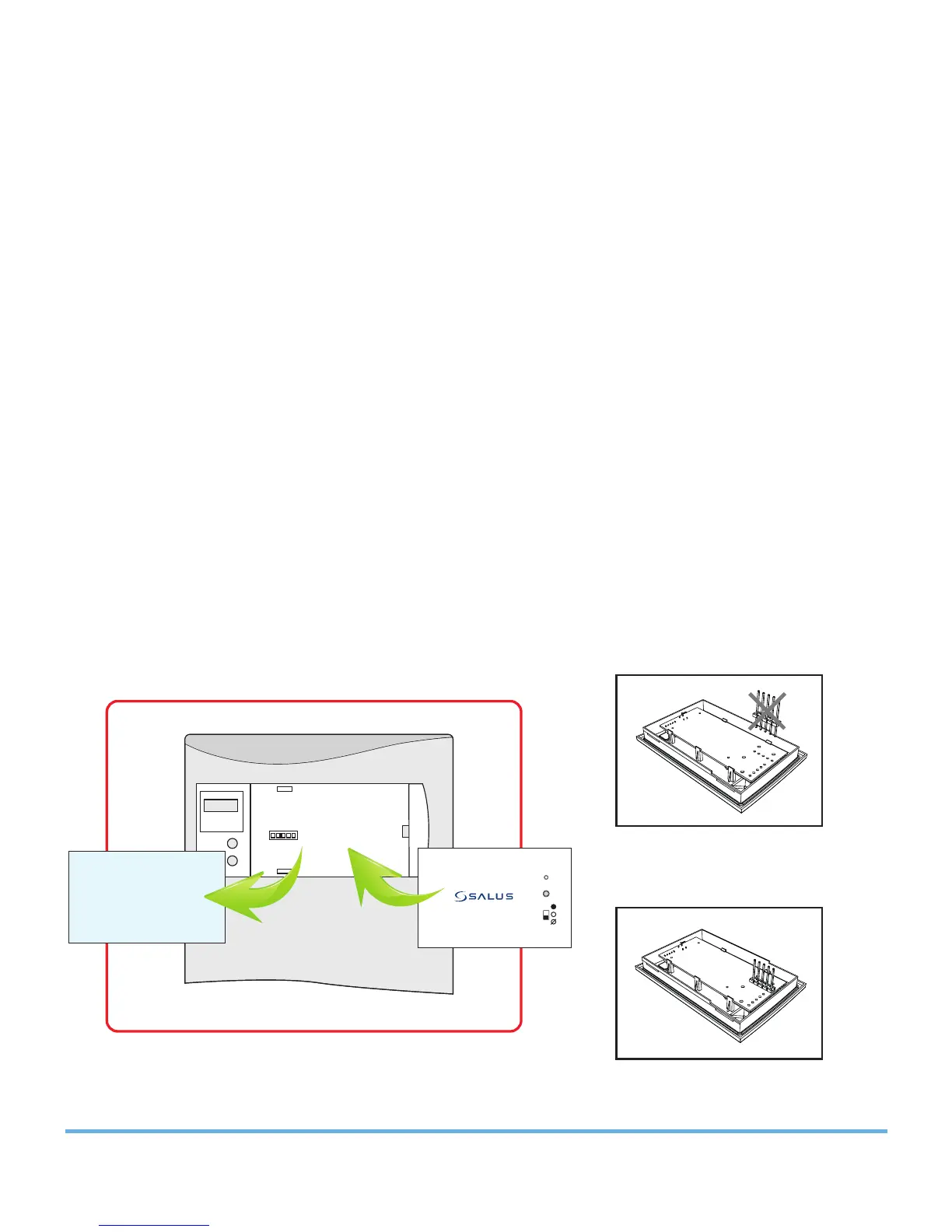

3.Insert the integral boiler control ensuring correct location
of the rear Connection pins.
For ECOTEC post April 2012 -
remove and discard pins.
For ECOTEC models prior to
April 2012, use as supplied
RXVBC605 INSTRUCTION MANUAL
