Salus RXVBC605 - RXWBC605 INSTALLATION GUIDE; Module Connection and Securing

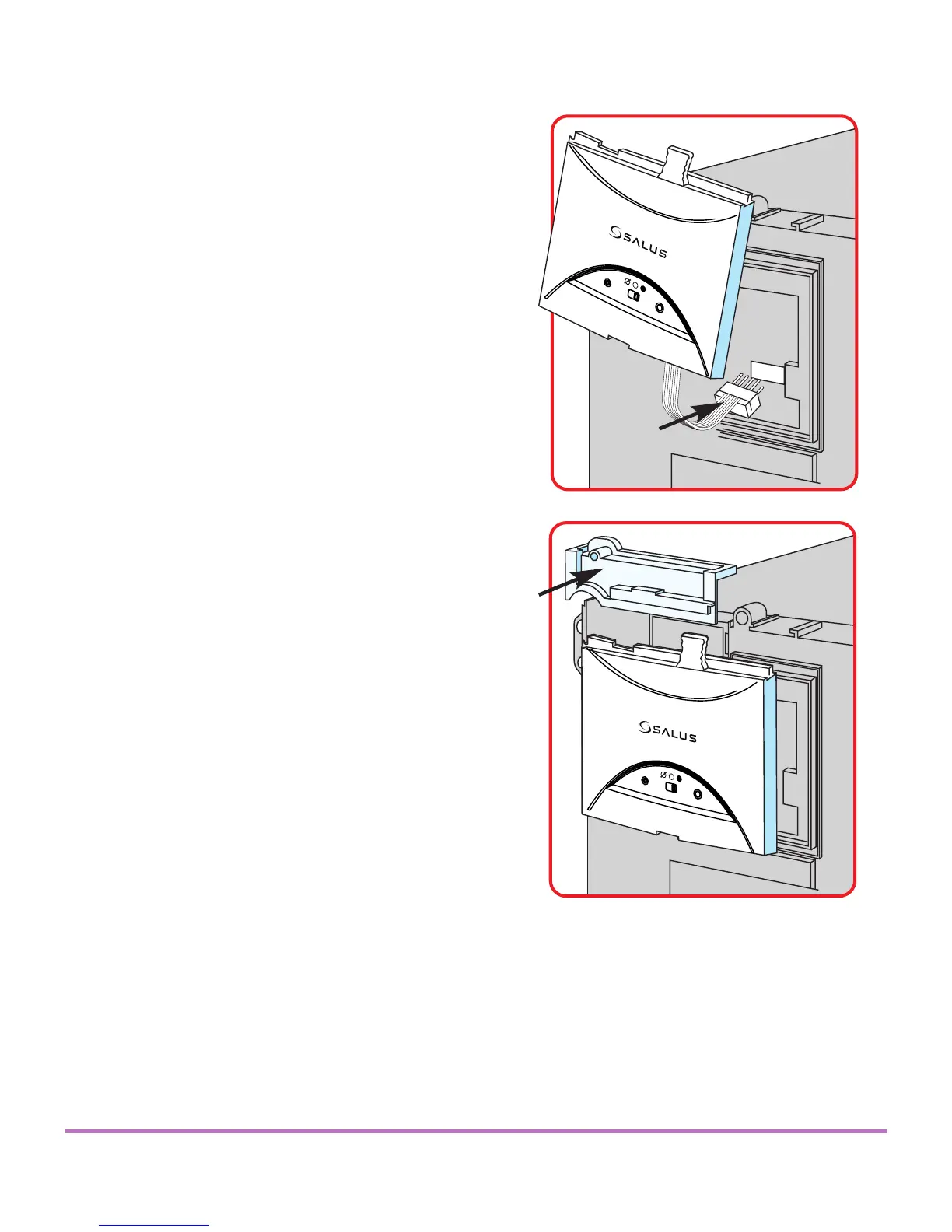

4. First plug in the connector block
C ensuring correct orientation.
Remember to ensure the block
is fully connected.
5. Now locate the boiler control’s
four hooks then press in and
down. Replace Cover panel A.
6. Replace the front fascia
and boiler’s outer casing
C
A
RXWBC605 INSTRUCTION MANUAL
20
