-87-
salva
E N G L I S H
14.4. Modular proofer
Technical Characteristics
Type
Model
Area
dm
2
Volume
dm
3
Capacity
EM+H 2013 240 1680 10 (60x40)
EMD+H 2013 480 3360 15 (60x40)
E+H 2013 360 2520 15 (60x40)
NXM+H 2013 337 2359 10 (76x46)
NXE+H 2013 506 3542 15 (76x46)

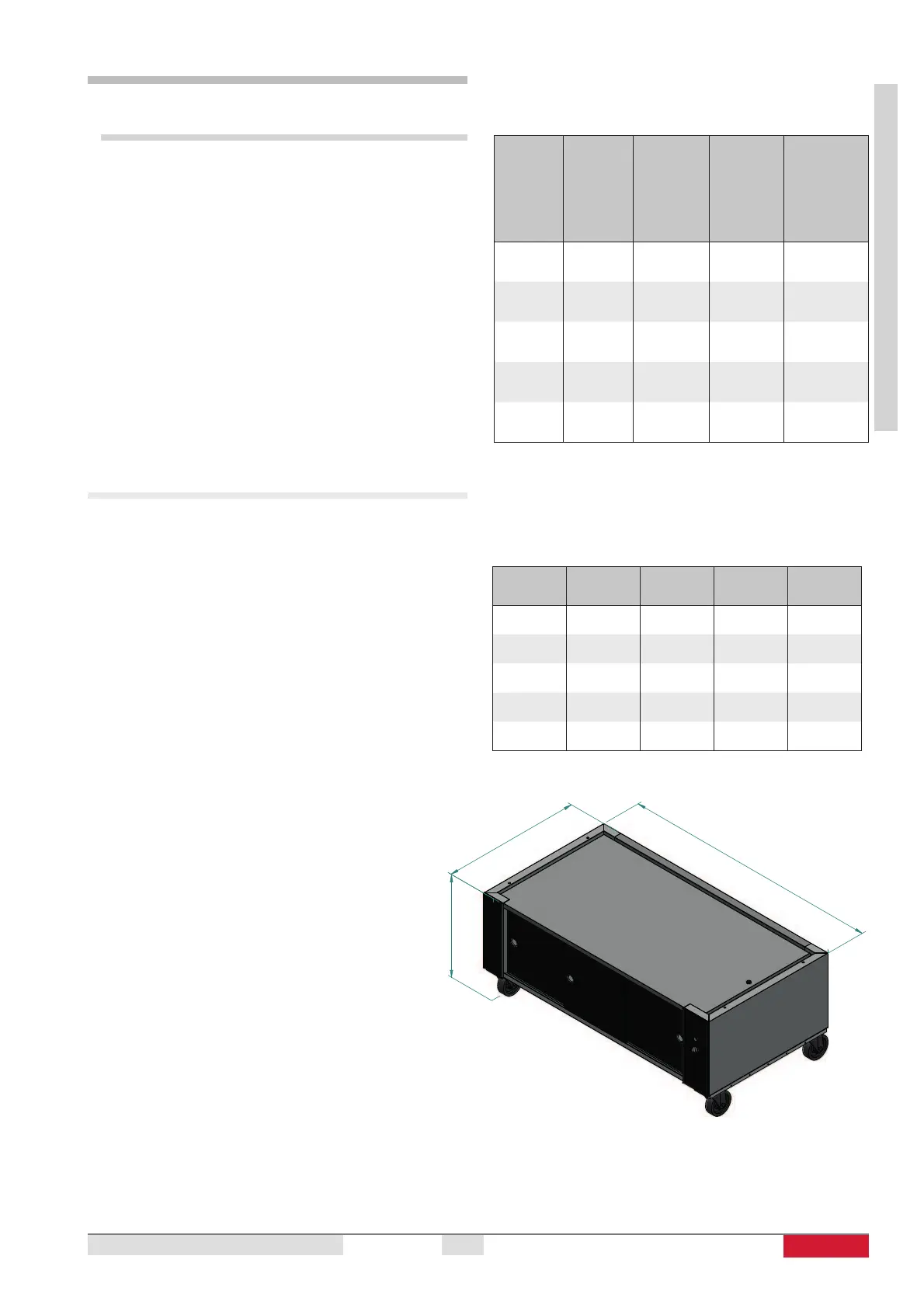

14.4.1. Dimensions / proofer positioning
The proofer is shipped to the client fully assembled. Its dimen-
sions are as follows:
* Included the wheels in the height
X
Y
Z
KG
EM+H 1317 924 704 108
EMD+H 1717 1124 704 139
E+H 1717 924 704 127
NXM+H 1452 1167 704 118
NXE+H 1912 1167 704 150
X
Y
Z
ae193f03.dft
