Front disc mower
KDF 390
- 13 -

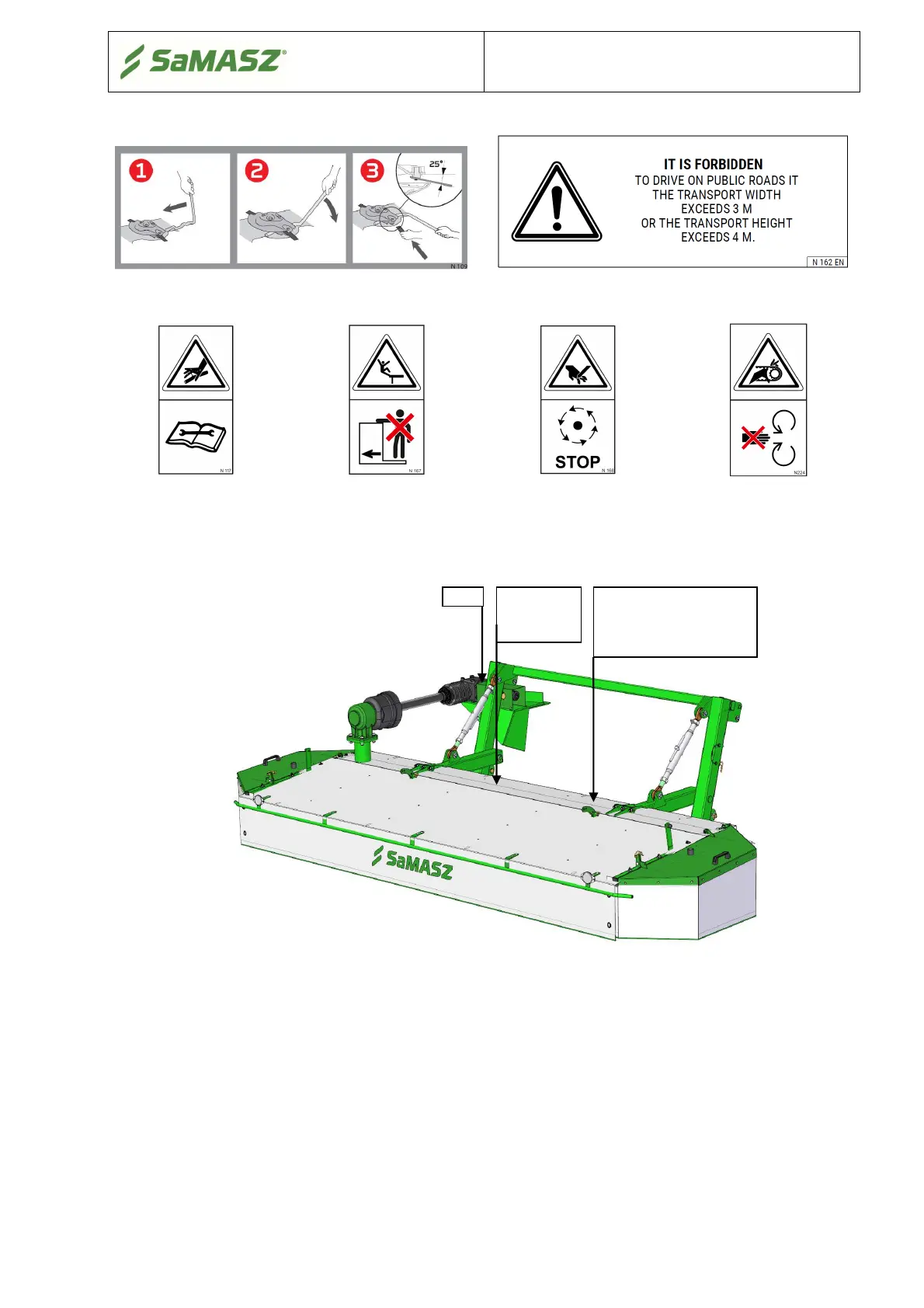

Fig. 7. Warning decals placed on the mower KDF 390
5. USING THE MOWER
5.1. Attaching the mower to self-propelled mower FORTSCHRITT
Drive from self-propelled mower FORTSCHRITT is transmitted on mower’s cutterbar
through joint shaft (2), intersecting axis gear (1) and PTO shaft (4) (Fig. 8).
The mower id driven by the PTO shaft with friction clutch (4). When connecting PTO shaft
between self-propelled machine and mower make sure, that external guard tube of the shaft is on
FORTSCHRITT’s side (Fig. 8).
Intersecting axis gear (1) is mounted on the special bracket (3) welded to self-propelled
machine over the right wheel (Fig. 8).
N-109
Quick knife replacement
N-162
N-117
Under pressure. Consult
technical manual for
service procedure
N-167
Do not remain on the
machine while driving
N-168
Do not touch the machine
before the rotating parts have
not come to a complete
standstill
N-224
Do not open and do not
take off safety guards, if
the engine is running
N-01; N-02; N-03; N-04
N-06; N-07; N- 23; N-48
N-49; N-50; N-117; N-167
N-168; N-224
N-14; N-15
N-52; N-162
N-28
