7. LUBRICATION
7.1. Cutterbar
Refilling the oil of the cutterbar is done through the inlet A (Fig. 16). Proper oil level is
5÷7 mm from the cutterbar bottom. In order to drain oil from the cutterbar dismount the cutterbar
enclosure by releasing bolts (B). The oil capacity shown in Tab. 6.

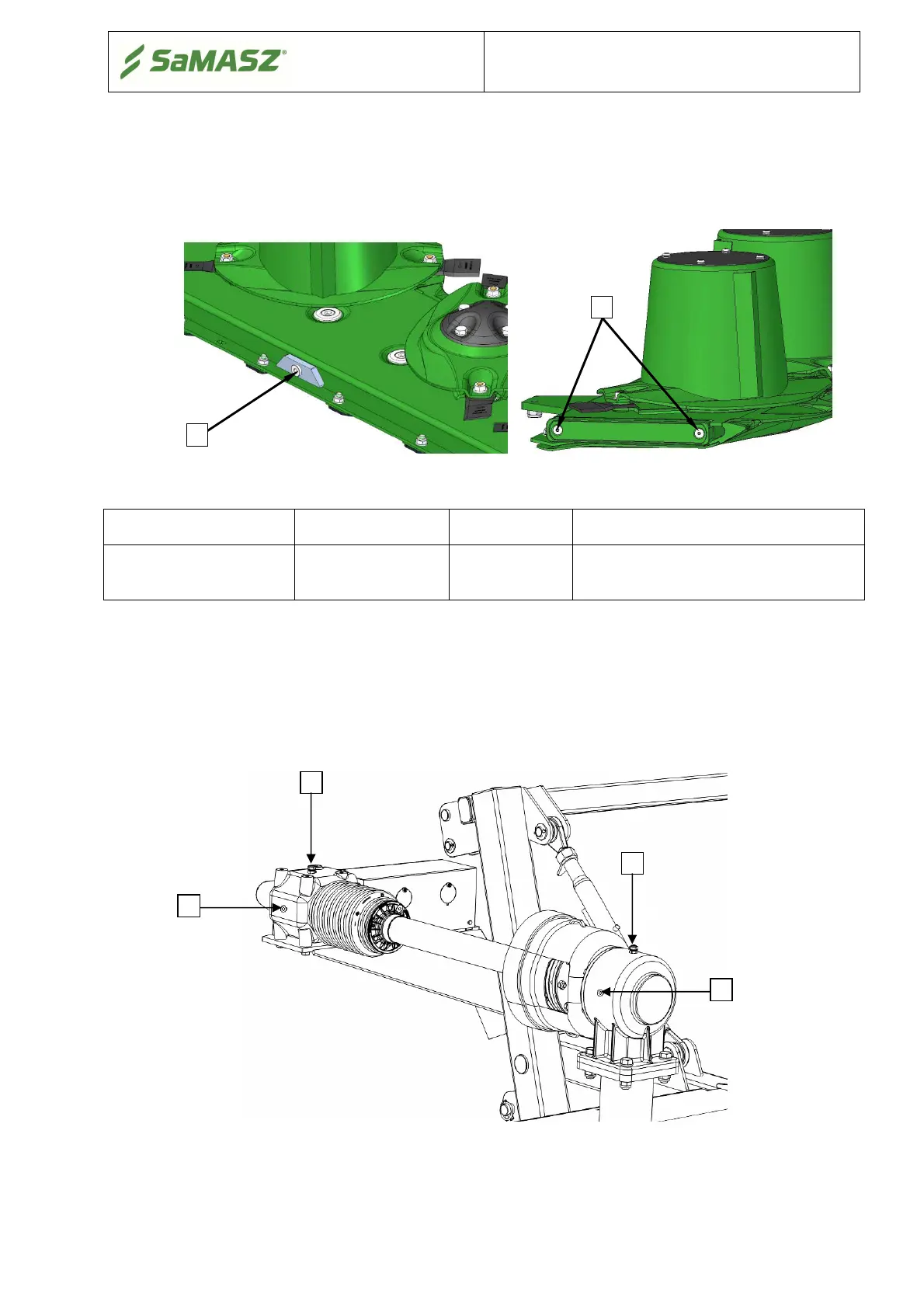

Fig. 16. Cutterbar oil inlet
Tab. 6. Oil capacities
Model Oil capacity [l] Oil type Lubrication frequency
KDF 390 7.0 80W90
After first 50 h of operation and then
after next 500 h (or at least once a year)
7.2. Intersecting axis gear
Everyday before starting work please check the oil level and, if needed, please refill after
having removed the vent A on the top of the gear (Fig. 17). The oil level can be checked through
the check opening B on the side of the gear. Please refill the oil until it is visible in the check
opening B. The oil capacity shown in Tab. 7.
Fig. 17. Intersecting axis gears’s lubrication points
A
B
A
B
B
A
