SaMASZ KDF 390 User Manual

Operator’s manual
Front disc mower
KDF 390
- 14 -
Mounting of the bracket may be done by SaMASZ crew or you can do it by yourself
according to the manual provided by the manufacturer (ATTACHMENT 1. Mounting of the
bracket in self-propelled mower FORTSCHRITT).

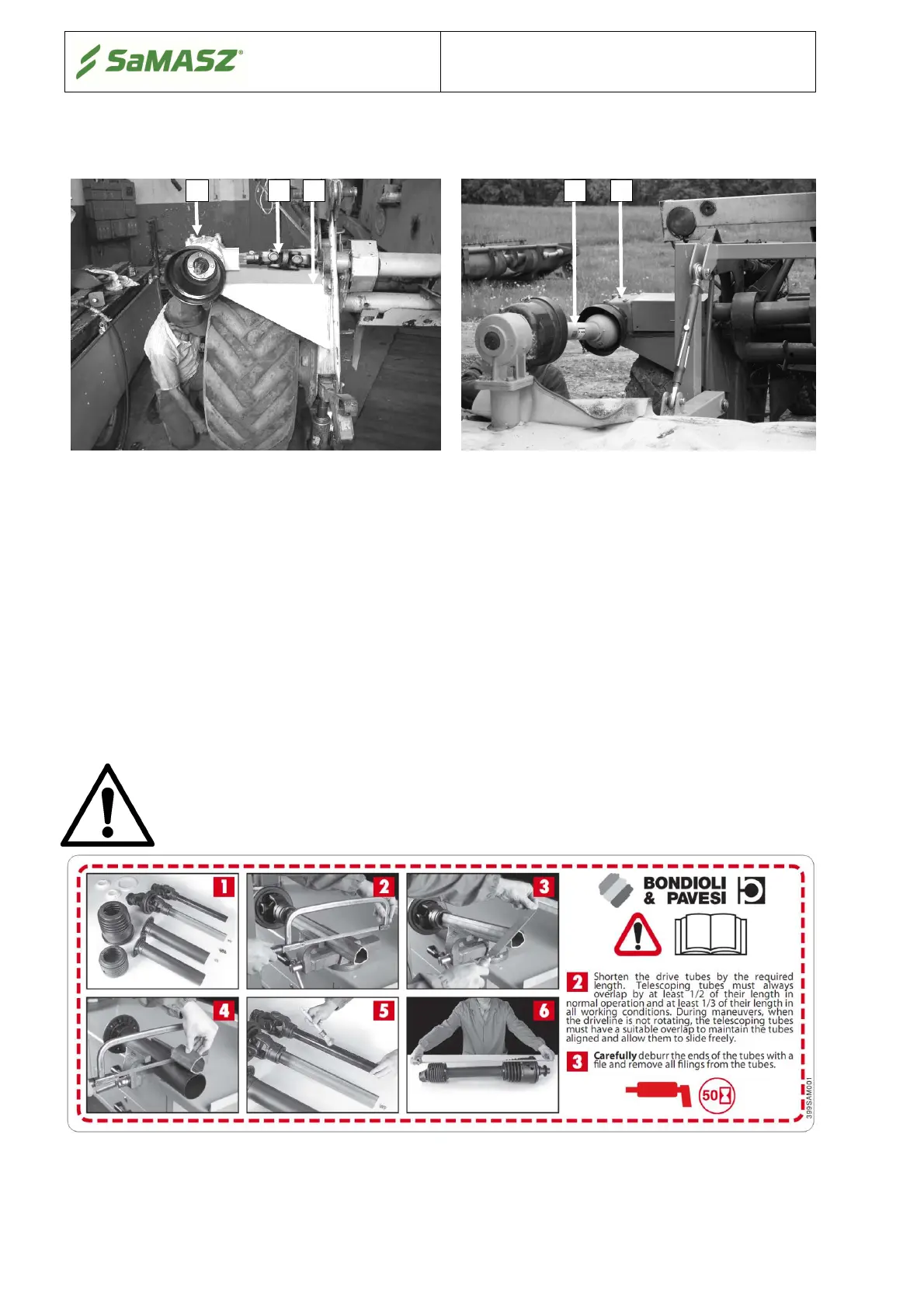

Fig. 8. Mounting the mower to self-propelled mower FORTSCHRITT
1 - Intersecting axis gear; 2 - Joint shaft – before mounting of the safety guard;
3 - Bracket; 4 - PTO shaft
5.1.1. Mounting PTO shaft
During PTO assembly, pay attention to the pictogram placed on the shaft. It is indicating the
correct assembly direction.
Prior to commencing operation, examine and adjust length of PTO shaft, which is designed to
mount machine on vehicle. The cover should be secured so that it does not spin by securing the
holding chains to a permanent part of the body of the vehicle and the loop on the guard of the
splined shaft of the mower drive shaft.
WARNING!
If need be, shorten the PTO shaft according to its operator’s manual given by
the shaft’s manufacturer (Fig. 9).
Fig. 9. Instruction of PTO shaft shortening
1 2 3 1 4
