3.3. Standard equipmenet and spare parts
The mowers are sold with the following standard equipment:
 warranty card,
 instruction manual along with a catalog of spare parts and Declaration of Conformity,
 additional set of knives,
 mounting lever for quick knife changing,
 PTO shaft,
 spray paint (150 ml).
Optional extra equipment:
 holders for warning plate and lights,
 warning plates with combined lights and reflectors,
 warning triangle.
NOTICE:
Optional extra equipment should be ordered separately.
Tab. 3. PTO shaft for front disc mower. Manufacturer Bondioli & Pavesi
Model
Power Lenght Moment
Symbol
Shaft ends
Manufacturer
KM mm Nm FORTSCHRITT KDF
KDF 390 55 720-990 380 8G4NO72FX635002
1 3/8” z=6
cover full
1 3/8” z=6
collar cover
Bondioli &
Pavesi
Clutch
Unidirectional
right
Friction clutch =
1200 Nm
PTO shafts of other brands with equivalent parameters could be used after SaMASZ
permission.

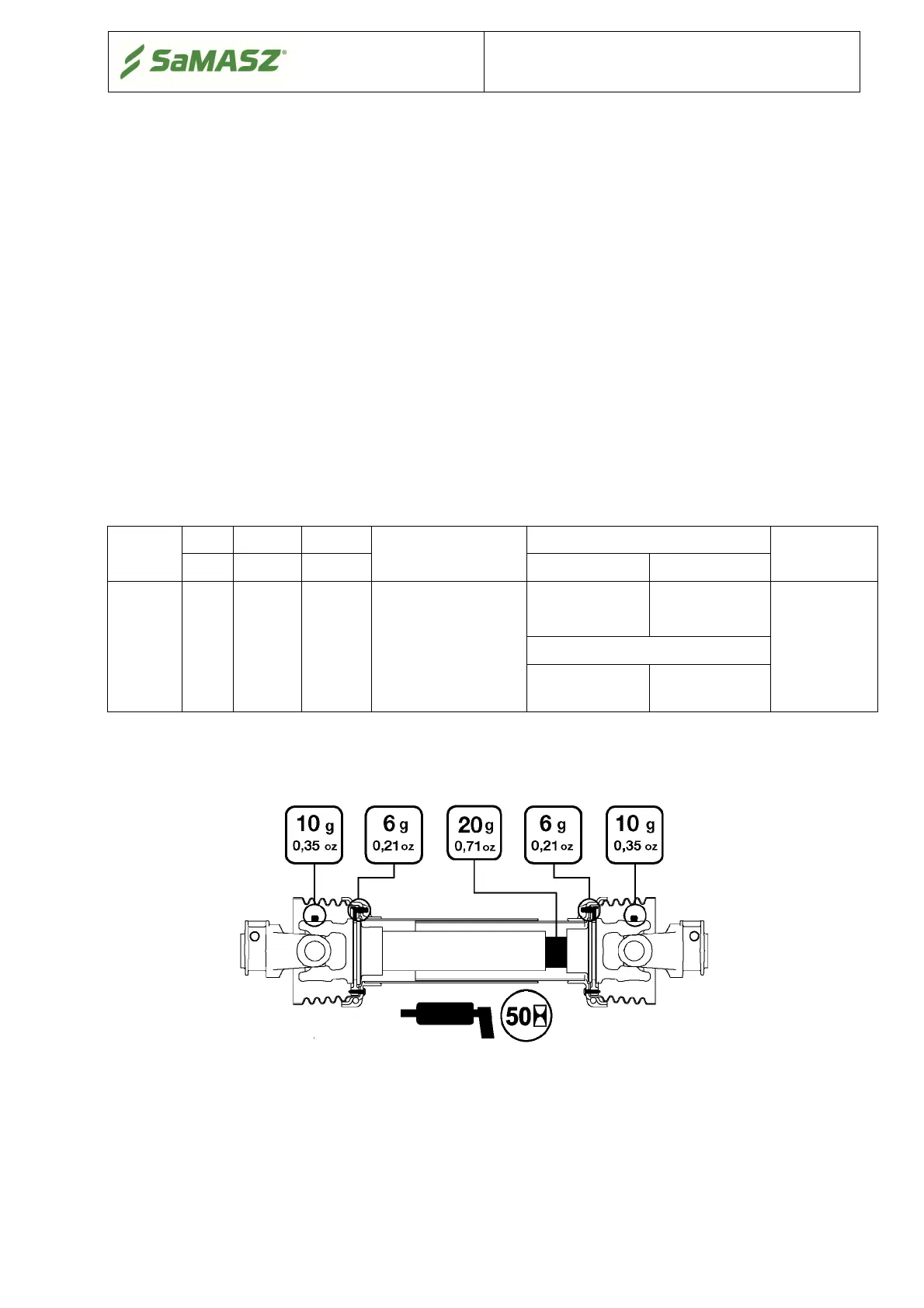

Fig. 3. PTO shaft lubrication points
NOTICE:
The frequency of lubrication of the articulated telescoping shaft should be carefully
adhered to. Points shown in Fig. 3 should be lubricated every 50 hours. The
articulated telescoping shaft should also be lubricated before and after longer
periods of disuse.
