❑ Disposal of the used product must be made according to official regulations. Improper disposal of
the used oil poses danger to the environment.
7.2. Cutter bar
Refilling oil in the cutter bar is done through the inlet (A) (Fig. 27a). A Proper oil level is 0.2"-0.3"
from the cutter bar bottom. Removing the old oil from the gearbox is done through the outlet (B) (Fig.
27b) in lower section of the cutter bar. Try to remove it immediately after the operation, if still warm.

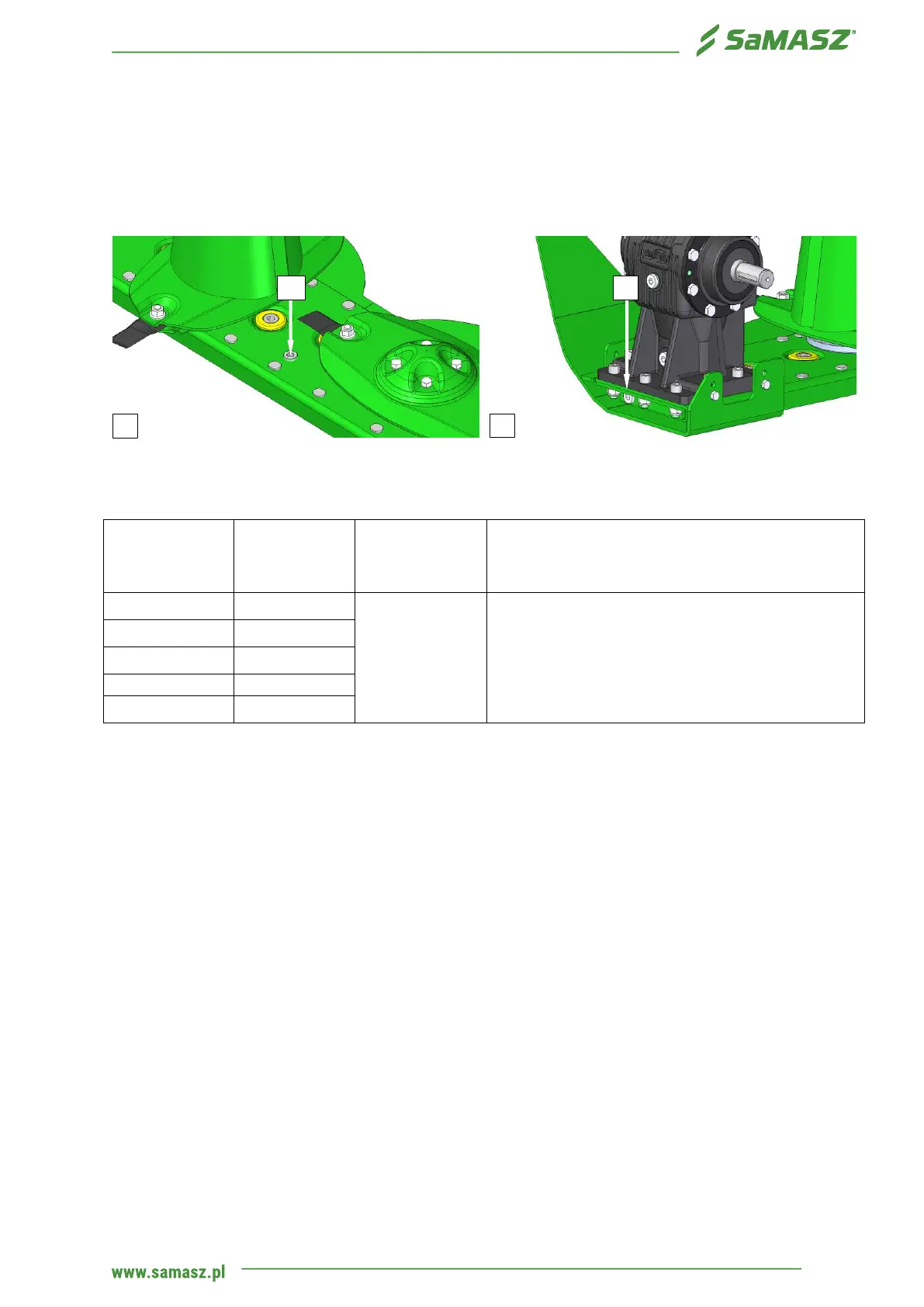

Fig. 27. Points of oil inspection and replacement in cutter bar
Tab. 6. Amount of oil to be filled in cutter bar
Oil capacity
[US gallon
lqd]
SAE 90 EP
(ISO VG 320)
/
80W90
After first 50 h of operation, then after next 500 h
(or at least once a year)
7.3. Intersecting axis gear
Every day before starting work check the oil level and, if needed, refill after having removed the
vent (A) (Fig. 28) on the top of the gear. The oil level can be checked through check opening (B). Please
refill the oil until it is visible in the check opening (B). The oil capacity in the gear is about 0.18 gal.
Check oil level when the cutter bar is on the ground.
