7.2. Location of ongoing adjustment points

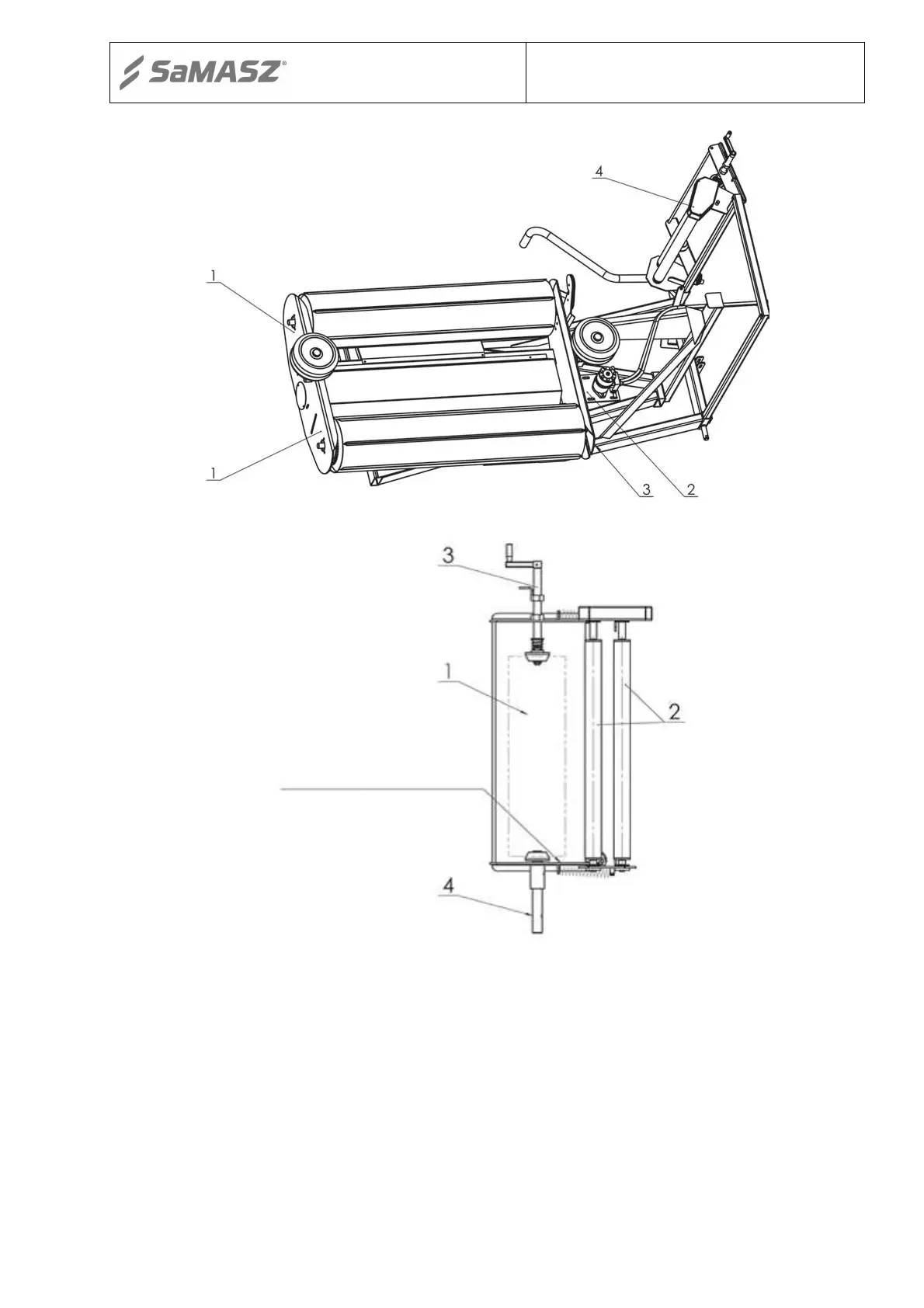

Fig. 6. Location of ongoing adjustment points
1- Drum chain tightening, 2- Drive chain tightening, 3-Revolutions sensor, 4-Foil pressure element
Fig. 7. Wrapping film feeder
With each revolution of the rotating frame, the bale and film rotate by a certain angle around
the horizontal axis, which causes the consecutive layers of film to be wrapped tightly around the
bale.
Film movement diagram
