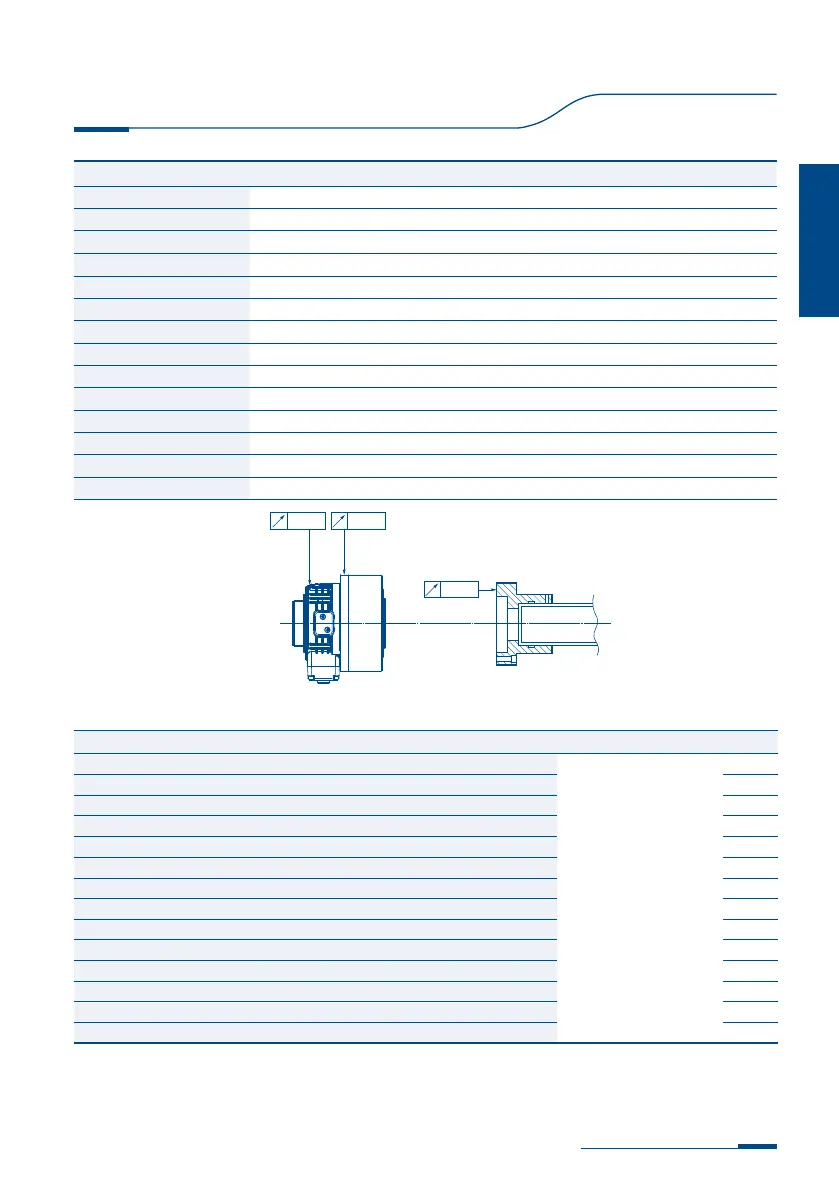

In order to obtain the run-out shown
above, run-out on cylinder adap-
tor front face should be minimized.
(↗0.005 less)
상기 흔들림을 얻을 수 있도록 실린더
아답터전면의 흔들림을 되도록 작게하여 주십
시오. (↗0.005 이내)
󱙚󱛌󳕅󱳭󱘔󸵄󳴵󱶴󱦊 󳍟󶷉󹢎󲼕󱟼󴫿󶵟
󸵴󹀢󲏝󱴙󹪸󵵙󳴵󱶴
󱝥󱘕
Fig.6
부착시의 흔들림 / Run-out cylinder after installation / 运行安装后缸
형식 / Type / 型式
b c d
e
f
SD-13546 5
Φ47
50 30 1
SD-15452 5
Φ47
50 30 1
SD-17568 5
Φ47
50 30 1
SD-18577 5
Φ47
50 30 1
SD-18582 5
Φ47
50 30 1
SD-20591 5
Φ47
50 30 1
SD-21510 5
Φ47
50 30 1
SDL-25411 5
Φ47
50 30 1
SDL-30516 5
Φ47
50 30 1
SD-13546S 5
Φ40
50 30 1
SD-15452S 5
Φ47
50 30 1
SD-17568S 5
Φ47
50 30 1
SD-18546S 5
Φ40
50 30 1
SDL-21546S 5
Φ40
50 30 1
형식 / Type / 型式
A B
SD-13546 및 상당품 / SD-13546 equivalent / SD-13546 型及类似产
0.01 이내 / Less / 以下
0.015
SD-15452 및 상당품 / SD-15452 equivalent / SD-15452 型及类似产 0.015
SD-17568 및 상당품 / SD-17568 equivalent / SD-17568 型及类似产 0.020
SD-18577 및 상당품 / SD-18577 equivalent / SD-18577 型及类似产 0.020
SD-18582 및 상당품 / SD-18582 equivalent / SD-18582 型及类似产 0.020
SD-20591 및 상당품 / SD-20591 equivalent / SD-20591 型及类似产 0.020
SD-21510 및 상당품 / SD-21510 equivalent / SD-21510 型及类似产 0.020
SDL-25411 및 상당품 / SDL-25411 equivalent / SDL-25411 型及类似产 0.030
SDL-30516 및 상당품 / SDL-30516 equivalent / SDL-30516 型及类似产 0.030
SD-13546S 및 상당품 / SD-13546S equivalent / SD-13546S 型及类似产 0.015
SD-15452S 및 상당품 / SD-15452S equivalent / SD-15452S 型及类似产 0.015
SD-17568S 및 상당품 / SD-17568S equivalent / SD-17568S 型及类似产 0.020
SD-18546S 및 상당품 / SD-18546S equivalent / SD-18546S 型及类似产 0.020
SDL-21546S 및 상당품 / SDL-21546S equivalent / SDL-21546S 型及类似产 0.020
