MOBILE UNITS

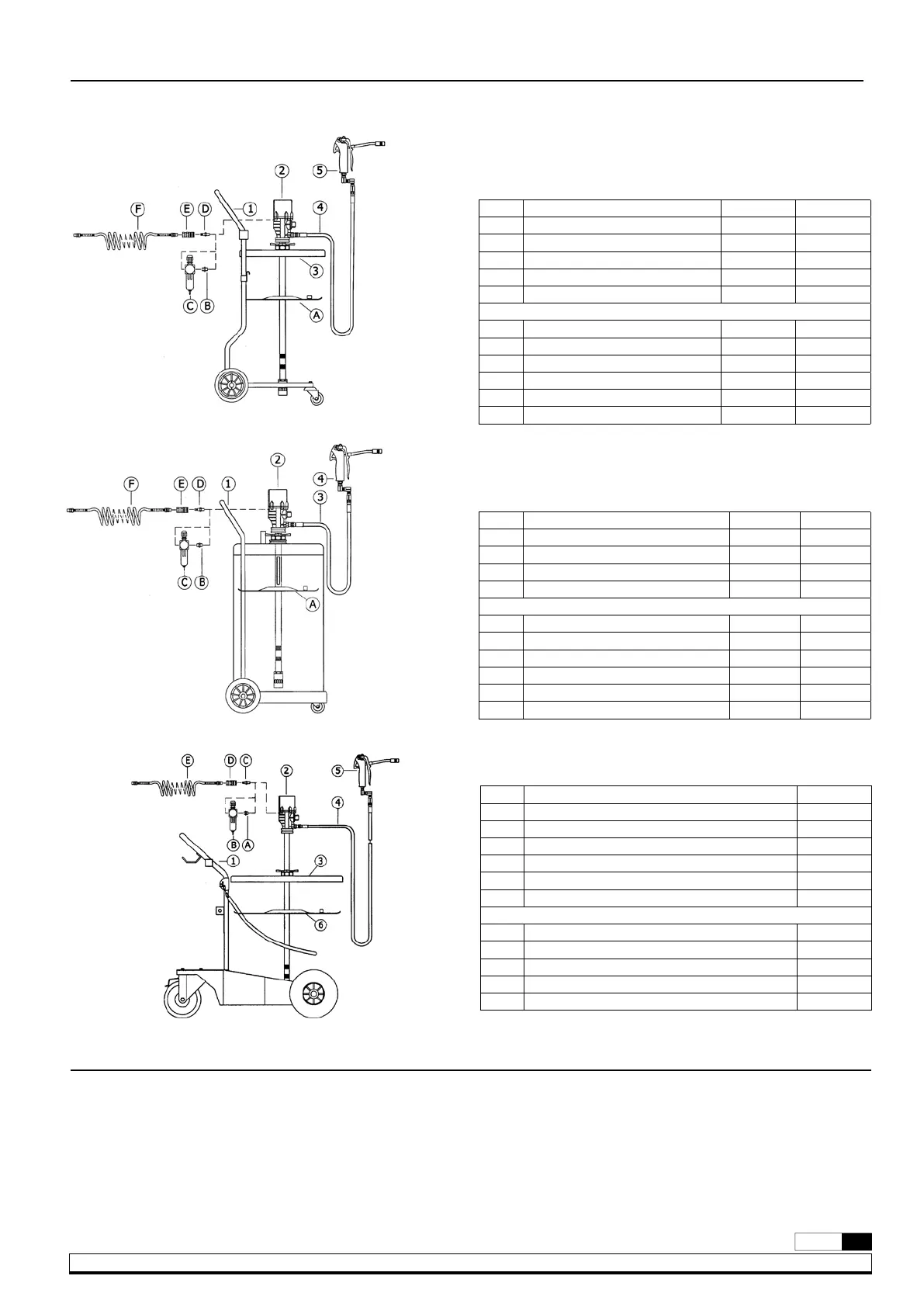

TYPICAL INSTALLATION
425150 (with trolley)
425290 (with trolley)
Numbers (1,2,…etc) included, letters (A,B,…etc) optional.
Pos Description 425150 425290
1 Drum trolley 431000 430000
2 Grease pump 407200 407200
3 Drum cover 418004 418004
4 Outlet hose 412103 412102
5 Grease gun 413080 413080
Optional
A Follower disc 417002 417002
B Nipple 239000 239000
C Filter regulator 240500 240500
D Connection nipple 259014 259014
E Quick coupling 253114 253114
F Air hose 243105 243105
482200 (with protective shield with wheels)
482500 (with protective shield with wheels)
Numbers (1,2,…etc.) included, letters (A,B,…etc.) optional.
Pos Description 482200 482500
1 Protective shield with wheels 480021 480050
2 Grease pump 404100 407200
3 Outlet hose 412102 412103
4 Grease gun 413080 413080
Optional
A Follower disc 417005 417002
B Nipple 239000 239000
C Filter regulator 240500 240500
D Connection nipple 259014 259014
E Quick coupling 253114 253114
F Air hose 243105 243105
428242 (with drum trolley)
Numbers (1,2,…etc) included, letters (A,B,…etc) optional.
Pos Description 428242
1 Drum trolley 432814
2 Grease pump 409200
3 Drum cover 418006
4 Outlet hose 412104
5 Grease gun 413080
6 Follower disc 417004
Optional
A Nipple 239000
B Filter regulator 240500
C Connection nipple 259014
D Quick coupling 253114
E Air hose 243105
OPERATION
This pump is self–priming. To prime it the first time, you must connect
the air supply to the pump and slowly increase the air pressure from 0
to the desired pressure using a pressure regulator, while keeping the
outlet valve (ex. a grease gun) opened. Once grease starts to come out
through the grease gun / guns, the pump is primed.
NOTE: It is important that the foot valve does not get in contact with
dirty areas, such as a workshop floor, because it may enter dirt or
foreign particles that can damage the seals.
Fig. 5
Fig. 6
Fig. 7
