EB 8052-E EN 9-17
Servicing and conversion
7. Position the clamps (301) and stem (9)
on the plug or piston stem according to
the 'Mounting dimensions' table in the
'Installation' section (under 'Mounting the
external anti-rotation xture') and tighten
screws (303) and washers (304) by
hand.

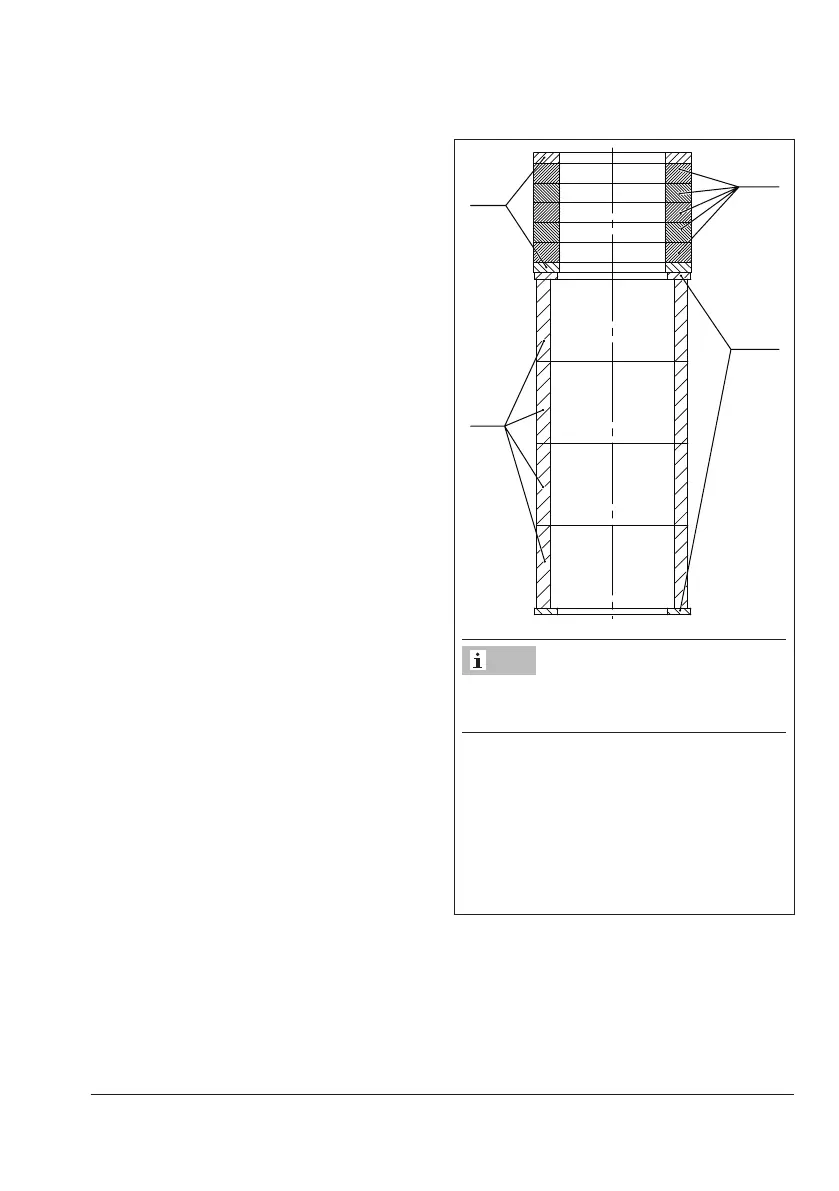

15.2
The bushings (15.5) may deviate from
those illustrated.
Legend
15.2 Packing
15.4 Anti-extrusion rings
15.5 Bushing
15.10 Washer
Fig.9-6: Arrangement of LLF20 packing
Note
