5-10 EB 3018 EN
Installation

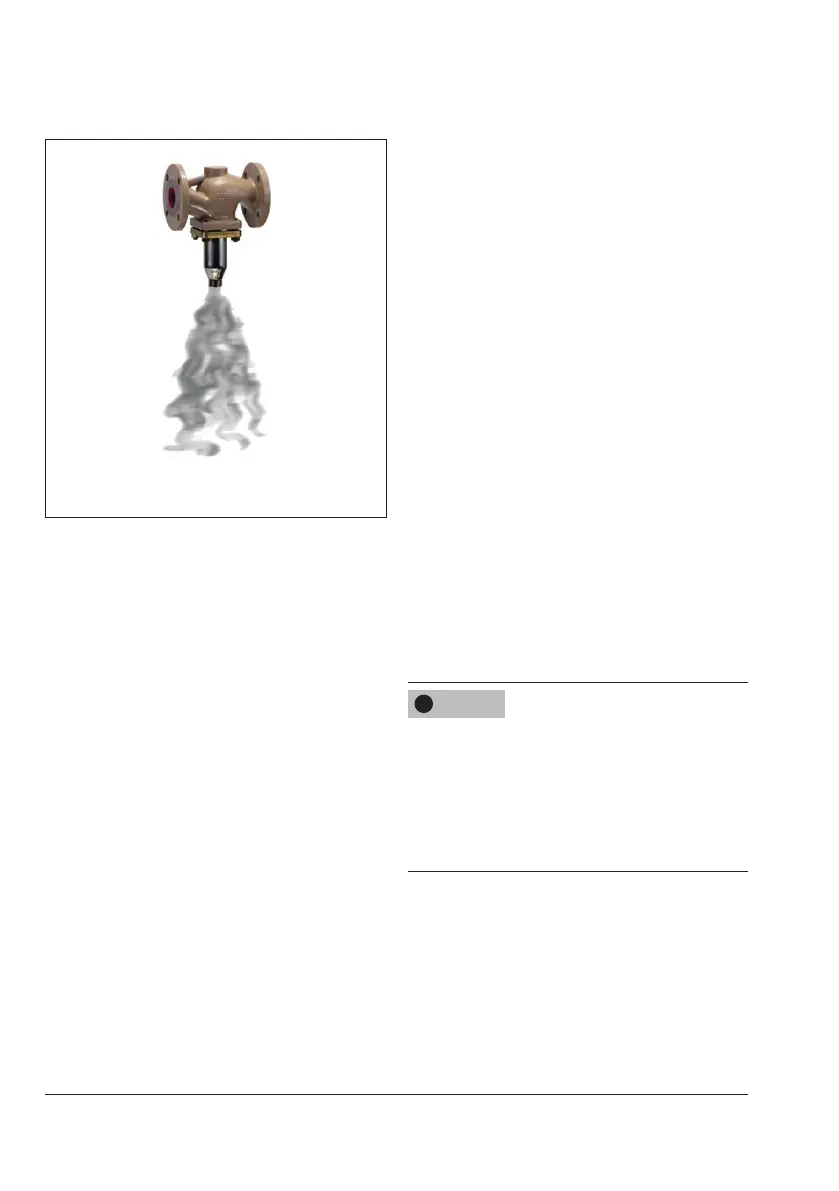

Fig.5-3: Medium escaping when an actuator
is not mounted on the valve
5.5 Insulation
To insulate cold systems, we recommend rst
lling the plant and carefully rinsing it. The
regulator must not yet be insulated at this
stage.
1. Start up the plant and adjust the set point
(see the 'Start-up' section).
2. Shut down the plant again and let it heat
up until the condensation water has
dried off.
3. Insulate the regulator and pipes convey-
ing the process medium using insulation
material with a water vapor barrier. If a
control line is to be routed through the
insulation, special care must be taken
with the sealing since slight changes in
shape may occur. The insulation thick-
ness depends on the medium tempera-
ture and the ambient conditions. 50mm
is a typical thickness.
Risk of regulator damage due to incorrect
insulation.
Î The actuator must be insulated for medi-
um temperatures below 0°C.
Î Do not insulate the electric actuator as
well.
NOTICE
!
