Annex
15.4 Spare parts
15.4.1 Valve
Legend for Fig.15-1 and Fig.15-2
2 Bellows
5 Restriction
12 Screw
16 Seat
17 Plug
20 Body
21 Guide cap
22 Label
24 Compression spring
26 Guide tube
27 Bottom section
34 Flange
35 Screw plug
46 Graphite seal on metal core
51 Stud
52 Hex nut
81 Cap
82 Hex nut
97 Hex nut (self-locking)
132 O-ring
171 Clamping ring
172 Seal
27
51
52
26
21
17
12
16
35
97
5
20
24
2
34
46
22
35

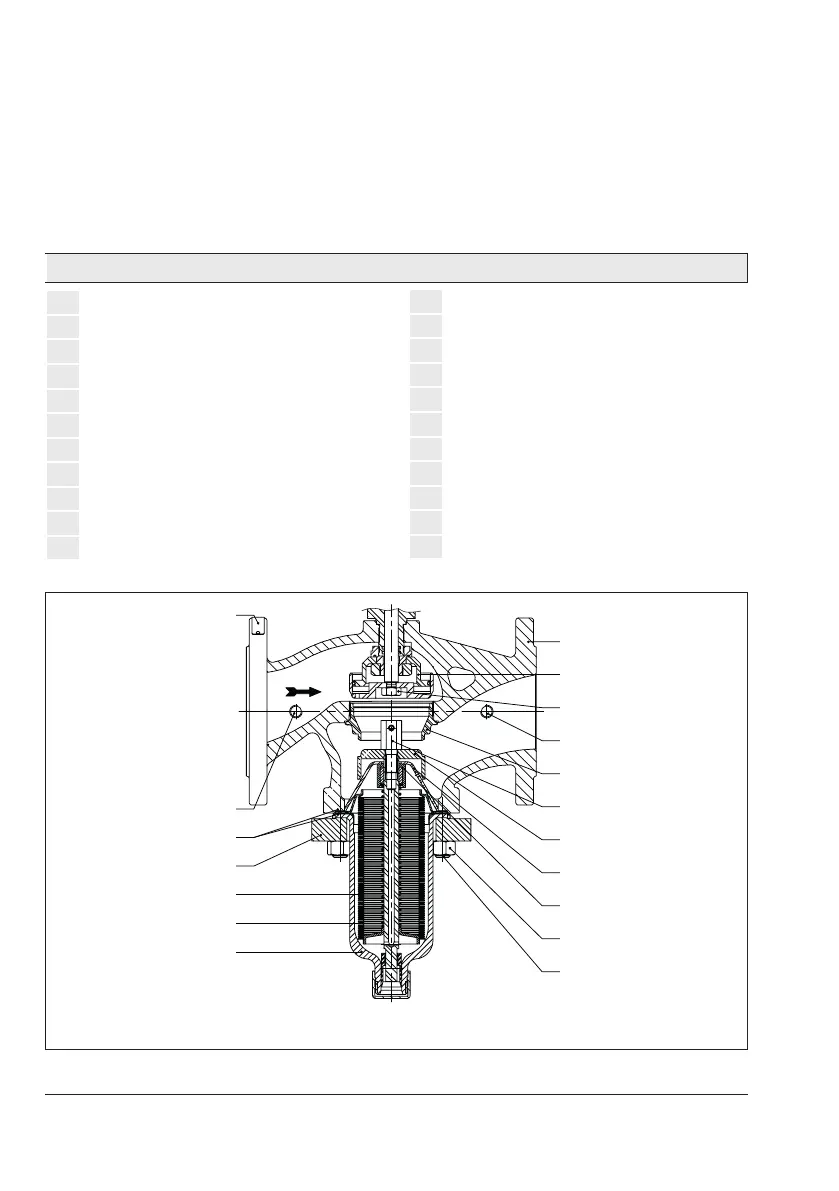

Fig.15-1: Type2423 Valve, DN15 to 100·Balanced by a bellows
