Samson 42-36 E - Actuator

15-6 EB 3018 EN
Annex
15.4.2 Actuator
Legend for Fig.15-5
1 Diaphragm case
2 Diaphragm case
3 Screw joint with restriction
6 Nut
8 Diaphragm stem
13 Diaphragm plate
14 Washer
15 Diaphragm
17 Hex bolt
19 Hex nut
23 Hanger
26 Compression spring
27 Compression spring
8
5
1
26
27
13
17
23
19
14
6
2
15
3

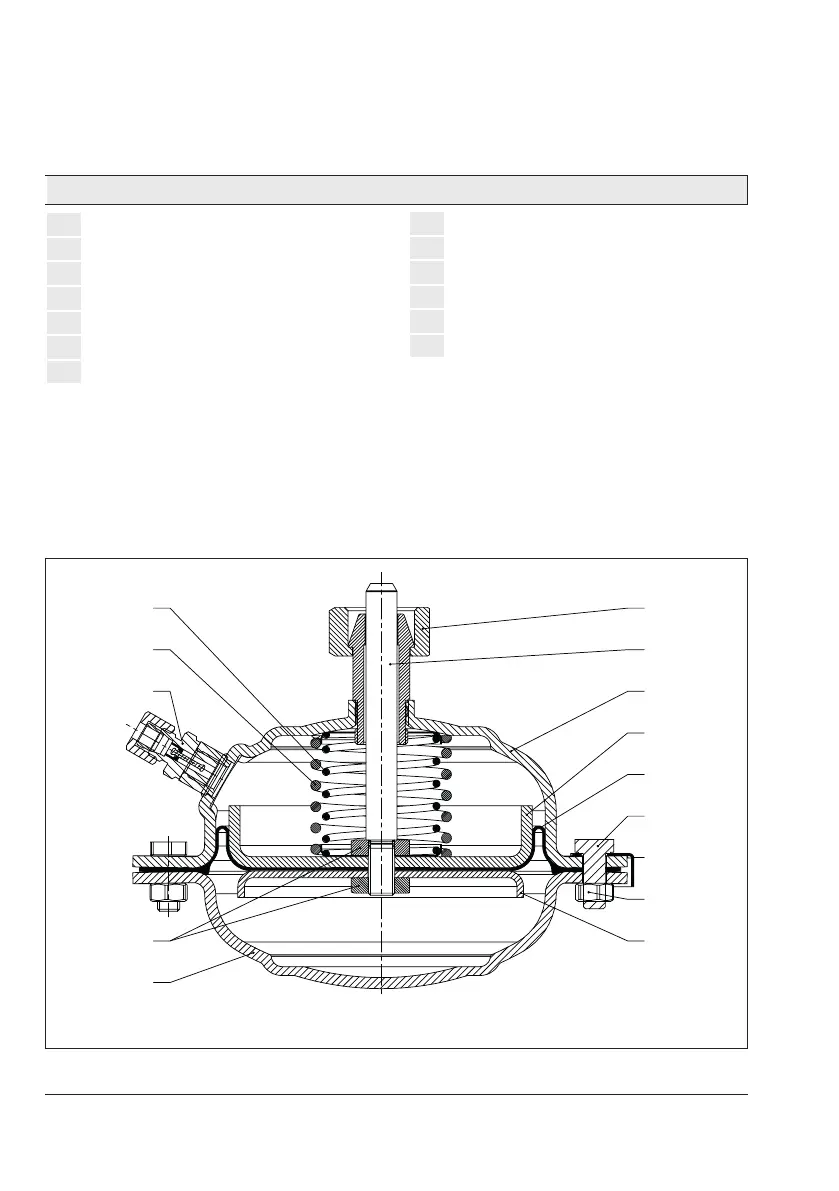

Fig.15-5: Type2426 Diaphragm Actuator, DN15 to 250
