Samson CT7 User Manual

System Features
42

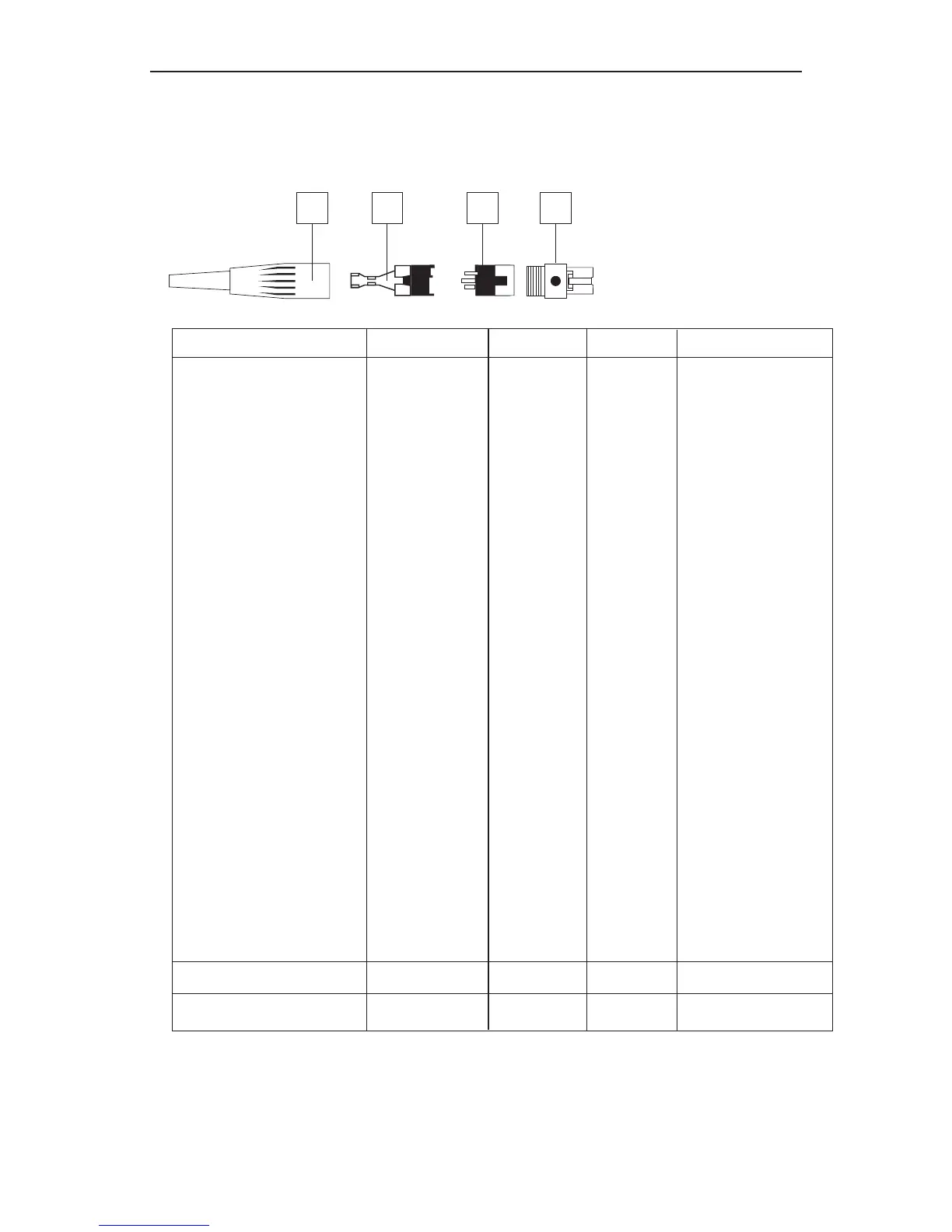

Appendix A: CT7 Multipin Wiring Guide and Chart
SWITCHCRAFT TA3F
1 2 3 4
41
MANUFACTURER MODEL PIN 1 PIN 2 PIN 3
SAMSON QL5 SHIELD WHITE JUMP to PIN 2
SAMSON LM5 SHIELD RED WHITE
SAMSON QV10e
SHIELD RED 5.6K WHITE
to PIN3
SAMSON QE
SHIELD RED JUMP TO PIN 2
SAMSON QV
SHIELD RED JUMP TO PIN 2
SAMSON HS5P3 RED WHITE SHIELD
SAMSON HM40P3 SHIELD RED WHITE
470 pf to 470 pf to
PIN 3 PIN 3
AUDIO TECHNICA AT831
YELLOW x 2
RED x 2 JUMP TO PIN 2
SHIELD
AUDIO TECHNICA MT350
SHIELD WHITE JUMP TO PIN 2
SONY ECM44 SHIELD/ RED
JUMP TO PIN 2
WHITE
GUITAR
SHIELD N/C AUDIO
PIN INFORMATION
SWITCHCRAFT
GROUND +Vdc AUDIO
TA3F
Procedure for wiring CT7L connector: Unscrew rubber boot 1 and pass wire
through 1 and 2. Solder wire to 3 after removing from 4 (use chart above).
Reinsert 3 to 4 with attached wire (3 is keyed to fit 4). Plug 2 into 3 again (2 is
keyed to 3) and crimp wire. Rescrew rubber boot 1 to 4.
