1: Input connector - The input device is connected here. The CT7 is supplied with either a lava-
lier or headset microphone or 1/4" jack cable (connected via a mini-XLR jack).
2: Power / Battery LED - This LED flashes once when the CT7 is first turned on and lights steadily
red when there are less than 2 hours of battery power remaining, indicating that the battery
needs to be changed. In order to avoid compromising audio fidelity (or having the CT7 stop
working completely), you should always replace the battery with a fresh one immediately when-
ever this LED lights red.
3: Audio on-off switch - When set to the “on” position, audio signal is transmitted. When set
to the “off” position, the audio signal is muted. Because the carrier signal remains during mut-
ing, no “pop” or “thud” will be heard. Note that turning this off does not turn off the transmitter
power—it is simply a way to temporarily mute the transmission of audio signal. If you don’t plan
on using the transmitter for extended periods, turn off the transmitter power by using the power
on-off switch (see #8 on the next page).
4: Belt clip - Use this clip to fasten the CT7 to a belt.
5: Battery cover release - Push in both sides of the battery
cover and pull back to open the CT7 battery cover.
6: Antenna - This permanently attached transmitter
“stiff”antenna should be fully extended for normal opera-
tions. See the “Setting Up and Using the Concert Series
System” section on page 9 in this manual for more informa-
tion about antenna positioning.

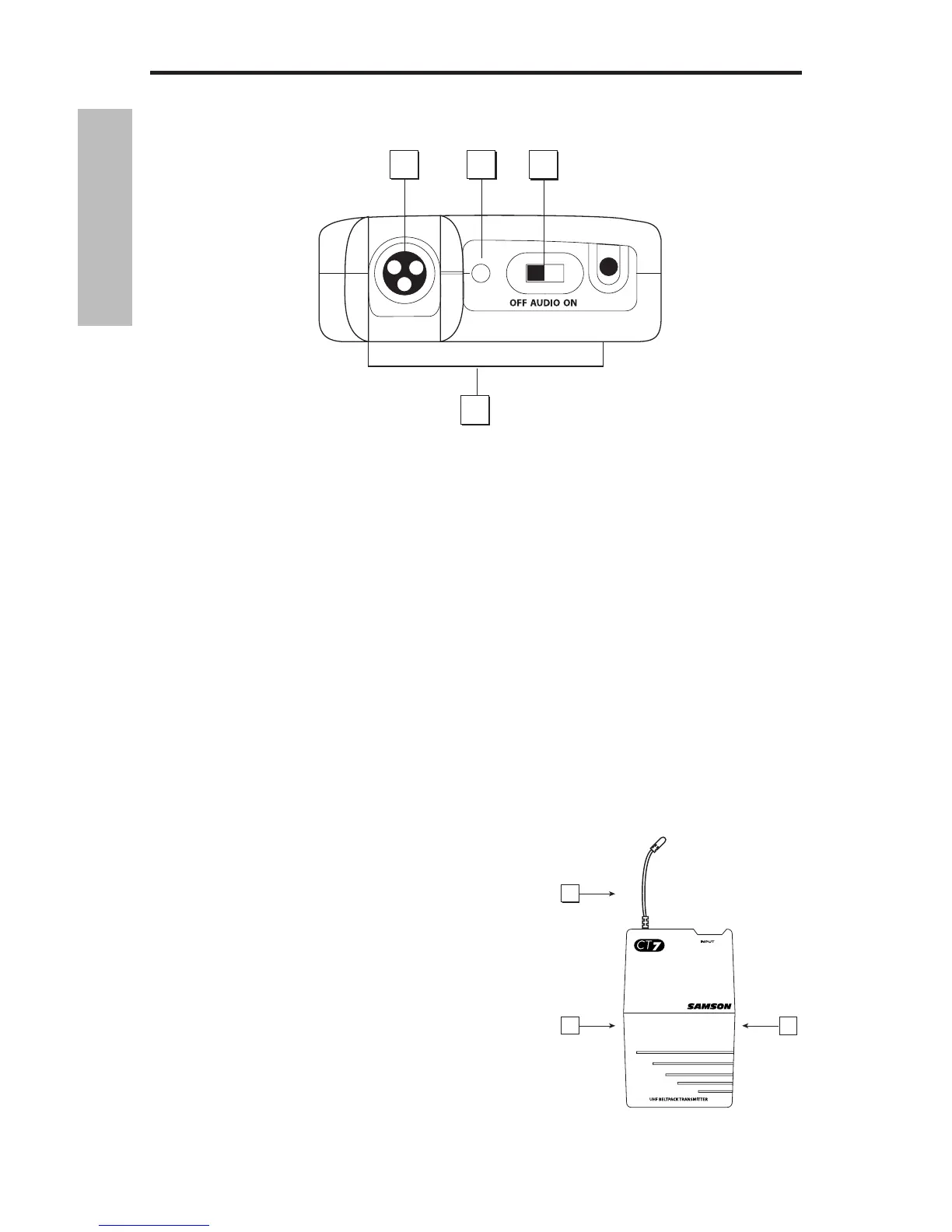

Guided Tour - CT7
1
4
2
3
5
5
6
