Servicing
1 Body
2 Flange/valve bonnet
4 Seat
5 Plug (with plug stem)
8 Threaded bushing (packing nut)
9 Stem connector nut
10 Lock nut
11 Spring
14 Body nut
15 Packing
16 Packing rings
17 Body gasket
21 Insulating section
23 Guide bushing
25 Plug stem extension
30 Retaining washers
32 Bolt
33 Nut
84 Travel indicator scale
A Actuator
A7 Actuator stem
A8 Ring nut
A26 Stem connector clamps
A
2
84
10
A26
9
8
16
11
A8
A7
14
17
1
4
5
14
2
15
21
17
33
9
25
10
8
30
32
23
5
4

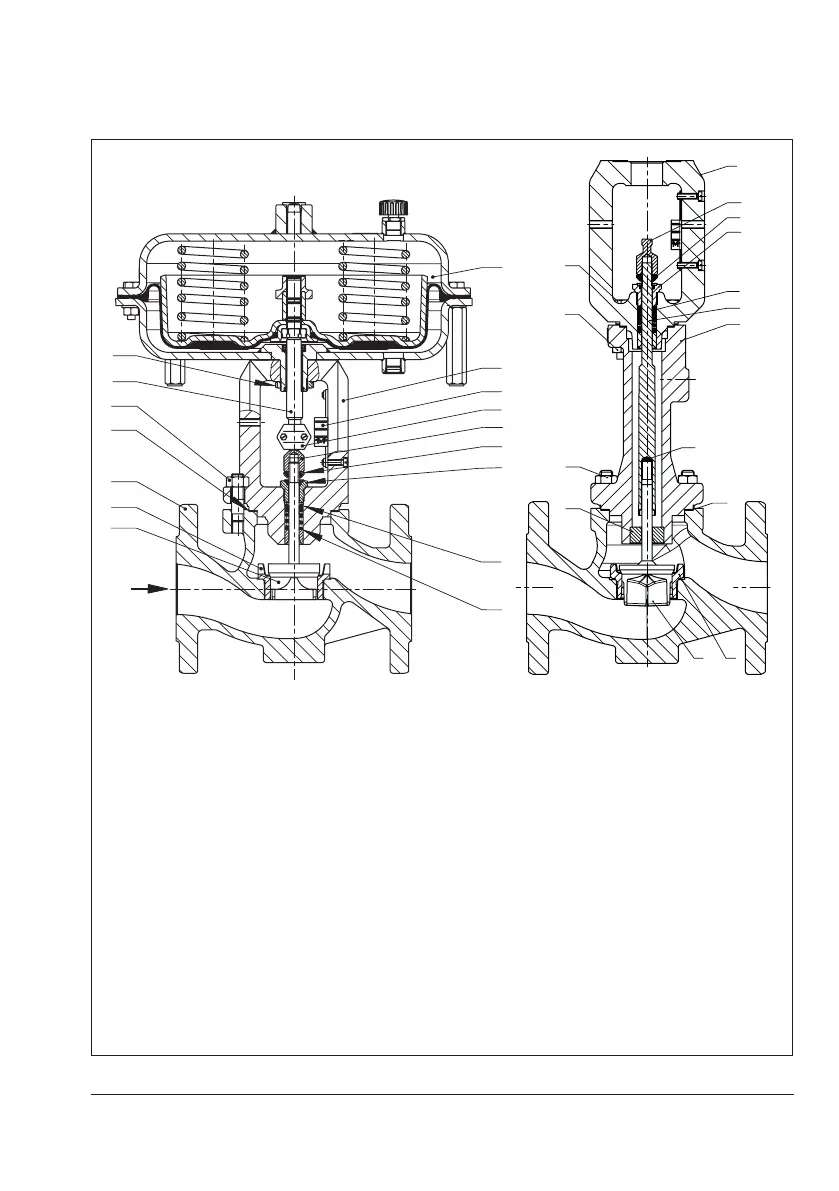

Fig.9-2: Standard version of Type3241 with Type3271 Actuator (left) and Type3241 in version
with insulating section (right)
