MDR16 System Set-Ups

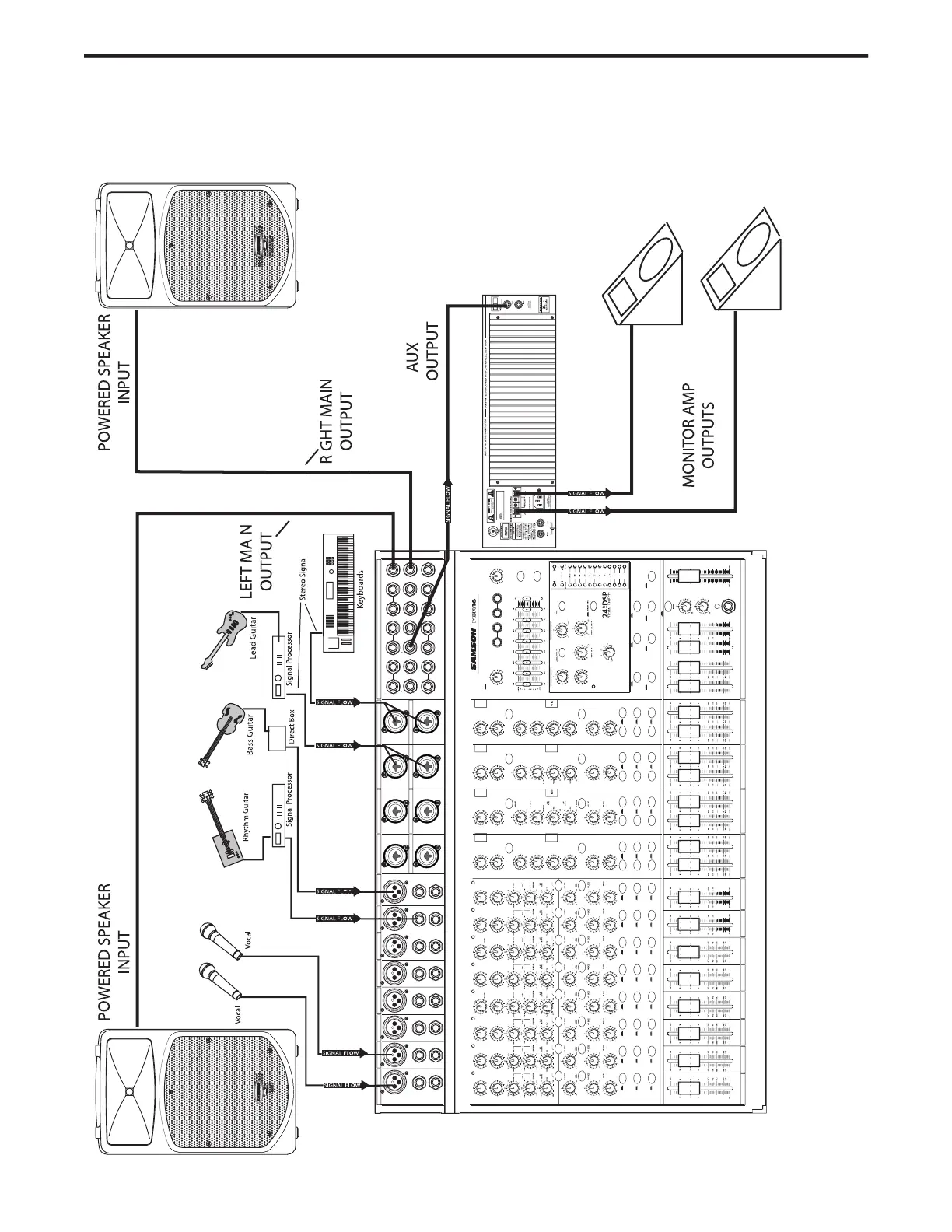

This system shows the MDR16 connected to a pair of powered speakers like the SAMSON dB500a. The AUX 1 is connected to an external power amp,
which is driving 2 monitor speakers. For inputs, two microphones are connected to channel 1 and 2’s low-impedance inputs, and the output of the
Bass Direct Box is also connected to the low-impedance input on channel 4. The Keyboards, as well as the Lead and Rhythm Guitar signal proces-
sor's outputs, are connected to the MDR16’s line inputs.
MDR16’s AUX OUT
connected to an
external monitor
amp.
MDR16 LIVE SOUND SET-UP
