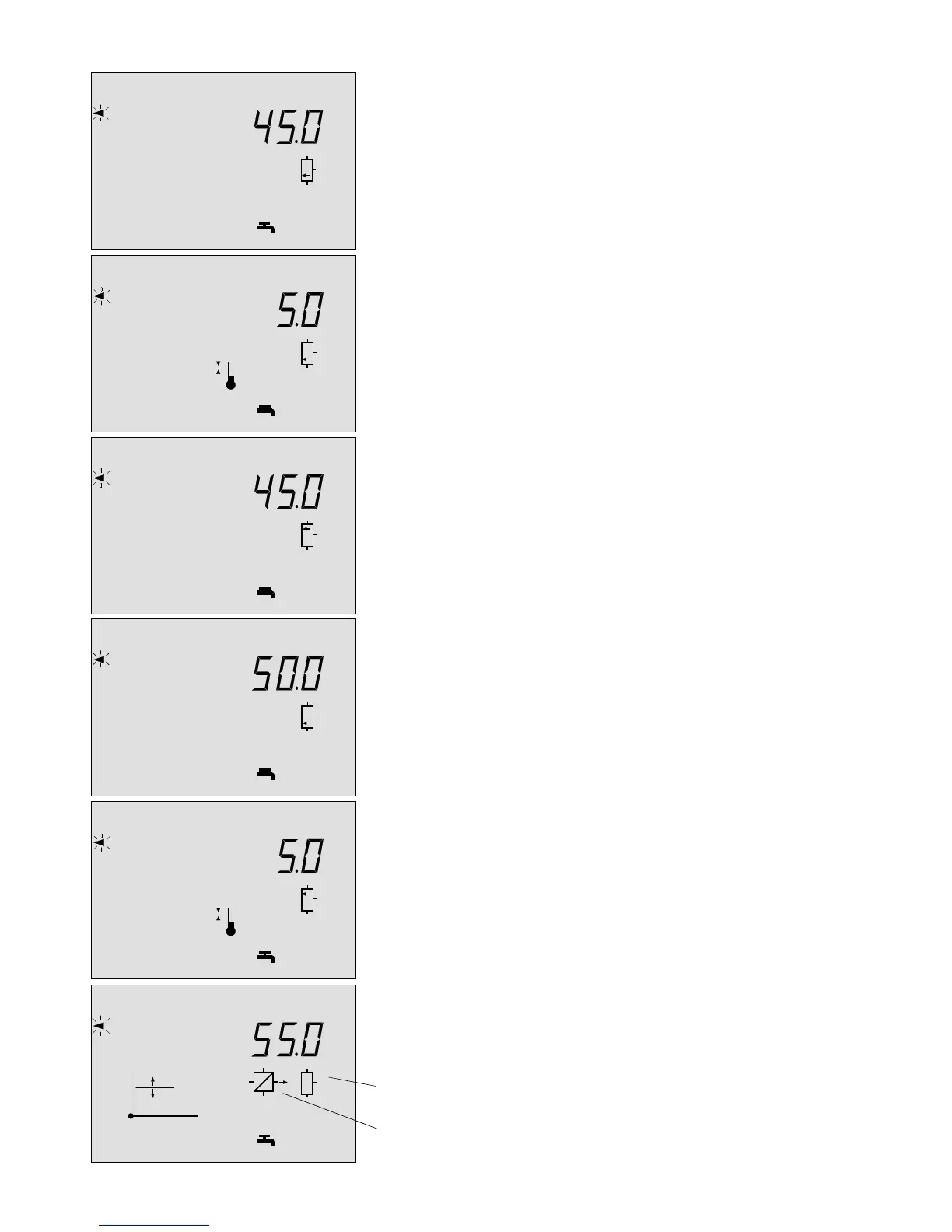

Entering parameters for drinking water circuit:
Drinking water heating ON
(20 to 90 °C)
In systems 2 .0,
3 and 5 with just one storage tank sensor SF1
followed by
Differential gap
(0 to 30 °C)
In systems 2.0,
3 and 5 with just one storage tank sensor SF1
Drinking water heating ON
(20 to 90 °C)
In systems 2, 3 and 5 with two storage tank sensors SF1
and SF2
Drinking water heating OFF
(20 to 90 °C)
In systems 2.0,
3 and 5 with two storage tank sensors SF1 and SF2
alternatively
Differential gap
(0 to 30 °C)
In system 2.1
Drinking water temperature
(20 to 90 °C)
In systems 4 and 6
101112 13 14151617 18 19123456789 20212223240
°C
101112 13 14151617 18191 2 3 4 5 6 7 8 9 20 2122 23240
°C
101112 13 14151617 1819123456789 20212223240
°C
101112 13 141516171819123456789 20212223240
°C
101112 13 141516171819123456789 20212223240
°C
101112 13 14151617 18191 2 3 4 5 6 7 8 9 20 2122 23240
°C
System 4
System 6
54
