Samson TROVIS 5573 - Page 112

16-30 EB 5573 EN
Appendix A (conguration instructions)

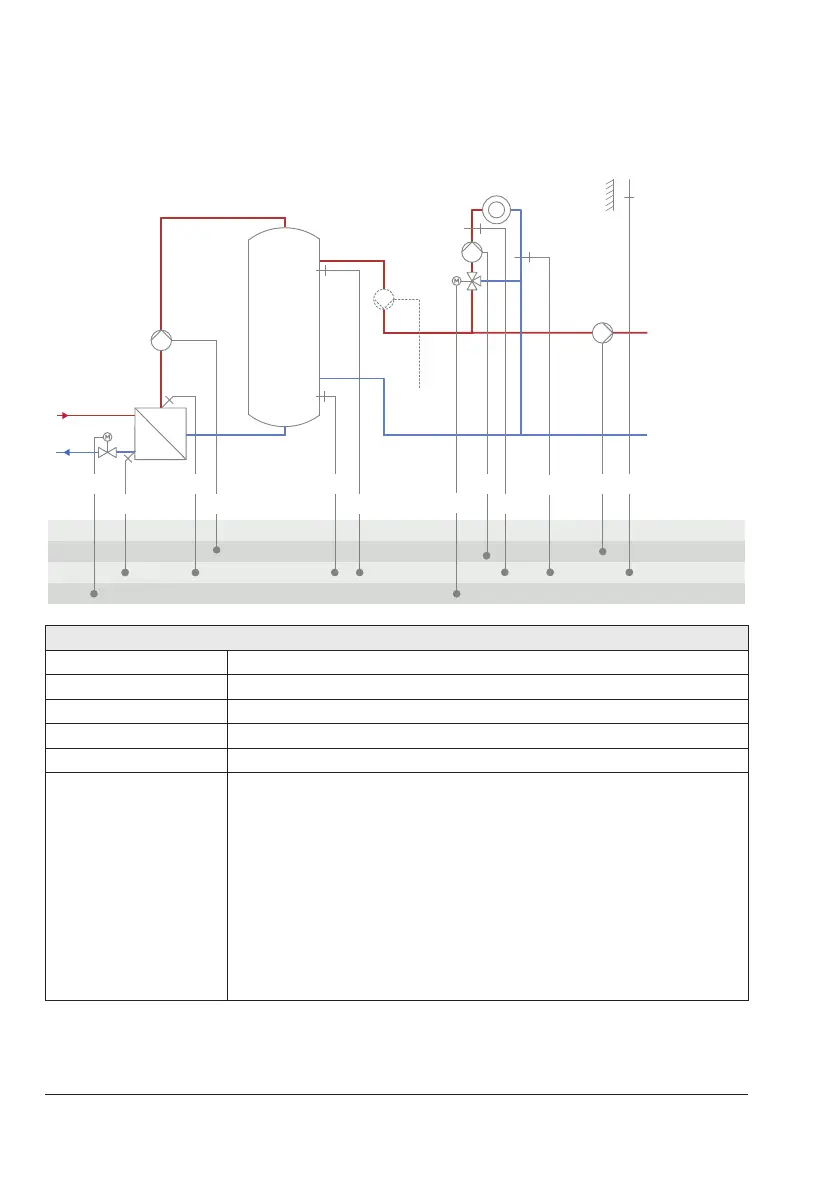

System Anl 16.1
BE
BA
AE
RK
SF2
SF1RüF1 SLP
VF1RK1 AF1
RK2
UP2
VF2
RüF2
UP1
UP1
Default setting
CO1->F02 - 1 (with AF1)
CO1->F03 - 1 (with RüF1)
CO1->F06 - 1 (with SF2)
CO2->F02 - 1 (with AF1)
CO2->F03 - 0 (without RüF2)
CO5'->F10
Functionofthe0to10Voutput:
− 1=ControlsignalRK1
− 2=ControlsignalRK2
− 7=SLPspeed
When
CO1->F21-1
− 6=Externaldemand
When
CO1->F18-1
− 5=Outdoortemperature When
CO5->F23-1
Direction 'AA'
