16-60 EB 5573 EN
Appendix A (conguration instructions)
Functions Default Conguration
Cold charging protection 0
10%
CO4->F22-1
Valveposition:1to100%
Parallel pump operation 0
10min
40.0°C
CO4->F06-1
Cancel:0to10min
Temperaturelimit:20.0to90.0°C
16.3.3 DHW heating in instantaneous heating system
WW
VF
ZP
KW
VF Flow sensor
ZP Circulation pump (DHW)
WW Hot water
KW Cold water

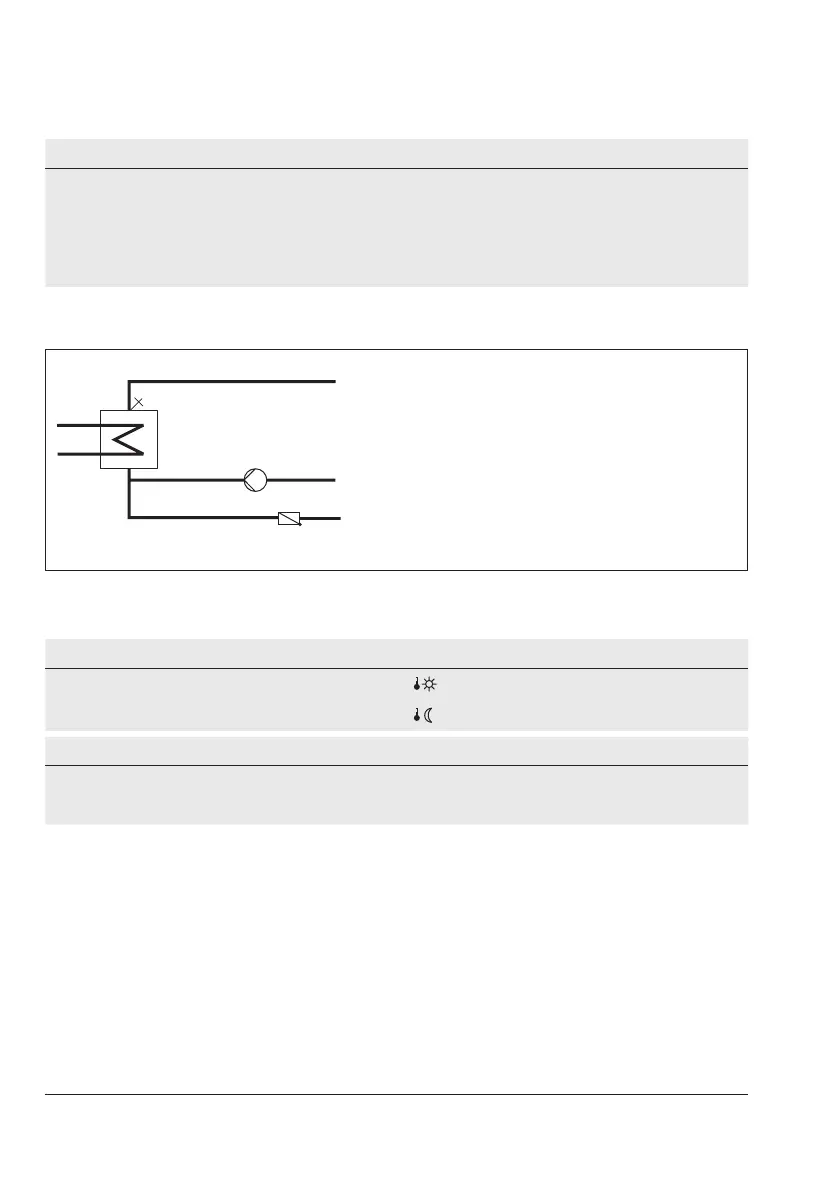

Fig.16-8: Schematics of an instantaneous heating system
Thecontroloftherequired'DHWtemperature'attheowsensorVFisonlyactiveduring
times-of-useofthecirculationpumpZP.
Parameters Default Switch position: value range
DHW temperature set point 60.0°C
: Min. to max. DHW temperature
DHW temperature sustaining value 40.0°C
: Min. to max. DHW temperature
Parameters Default Parameter level: value range
Min. DHW temperature 40.0°C PA4:5.0to90.0°C
Max. DHW temperature 60.0°C PA4:5.0to90.0°C
16.3.4 Domestic hot water heating with solar system
ThesystemsAnl1.3and2.3arettedwithasolarsystemforDHWheating.Inthesesys-
tems, the difference between the temperatures measured at storage sensor SF2 and the sen-
sor at the solar collector VF3 is determined. The 'Solar circuit pump ON' parameter deter-
mines the minimum temperature difference between sensors VF3 and SF2 required to acti-
vate the solar circuit pump. If the temperature difference falls below the value of 'Solar circuit
pump OFF', the solar circuit pump is switched off. Basically, the solar circuit pump is also
