Samson XPD2 User Manual

XPD2 USB Digital Wireless System 5

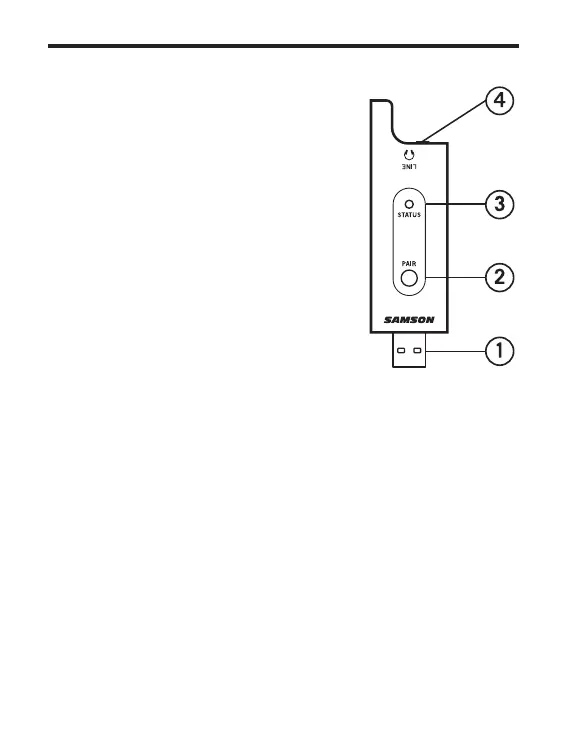

RXD2 Controls
1. USB Connector - Plugs into the USB jack
on the rear panel of a wirelessly enabled
Samson audio device. The receiver can
also plug directly into a computer USB
port and will be recognized as a USB
audio device. The unit passes audio to the
device and receives power from the device
through this connector. If connecting
the LINE output to an analog device, the
RXD2 can be powered using a standard 5
Volt adapter.
2. PAIR Switch - Press >5 seconds to enter
pairing mode.
3. STATUS Indicator - This LED displays the
operation mode:
Amber: Normal Operation
Flashing Amber: Pairing
No Light: Not paired; Transmitter out of
range; No Power
4. LINE / Headphone Output - Use this 3.5mm
jack when connecting to an analog line
input or headphones for monitoring.

Samson XPD2 Specifications

Operating Environment

operating temperature	10°C - 40°C
working range	100' line of sight
working frequency	2.404-2.476 GHz

Power

power requirements	two AA alkaline batteries
battery life	20 hours
operating voltage	5V DC

Audio Specifications

audio frequency response	20 Hz - 17 kHz
signal to noise ratio	>85 dB
audio sample rate	32 kHz

Weight and Dimensions

weight	0.21 lb / 93 g
dimensions (HxLxD)	96 mm x 62 mm x 18.5 mm
dimensions (LxDxH)	89 mm x 23 mm x 8 mm
