13 Circuit Descriptions
13-2
13-1-1 VCT49XYI (IC700)
13-1-2 VSP Block

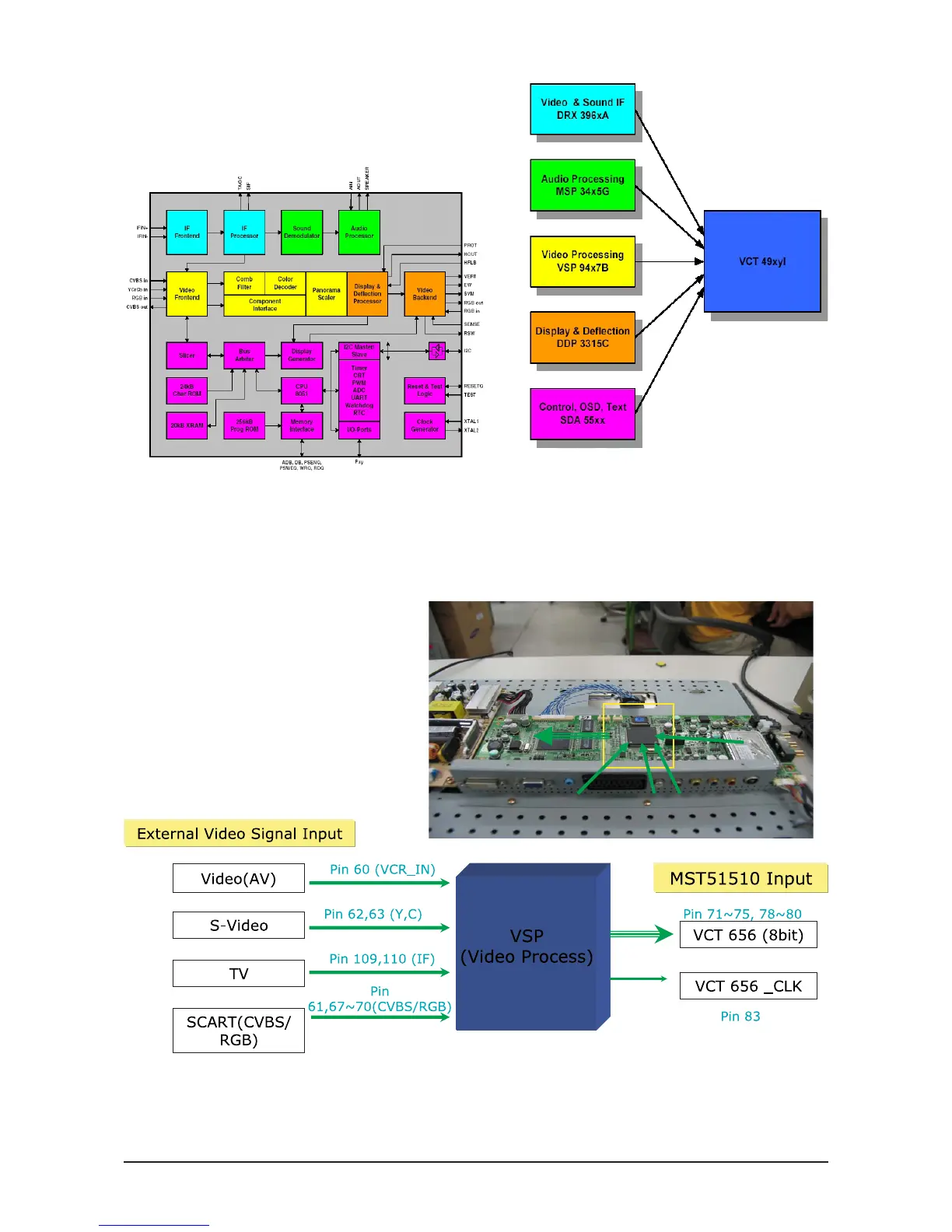

: CVBS, S-Video, RF(IF), SCART
(RGB) Convert 656 format to video
input and transfer to MST51510
