3. Installing the Product
80 English 8/2020. Rev 0.3
2. Connect the signal cable “WIRE ASSY MODULE TO MODULE #1" from Module #1 “Left Connector” to
Module #2 “Right Connector.”

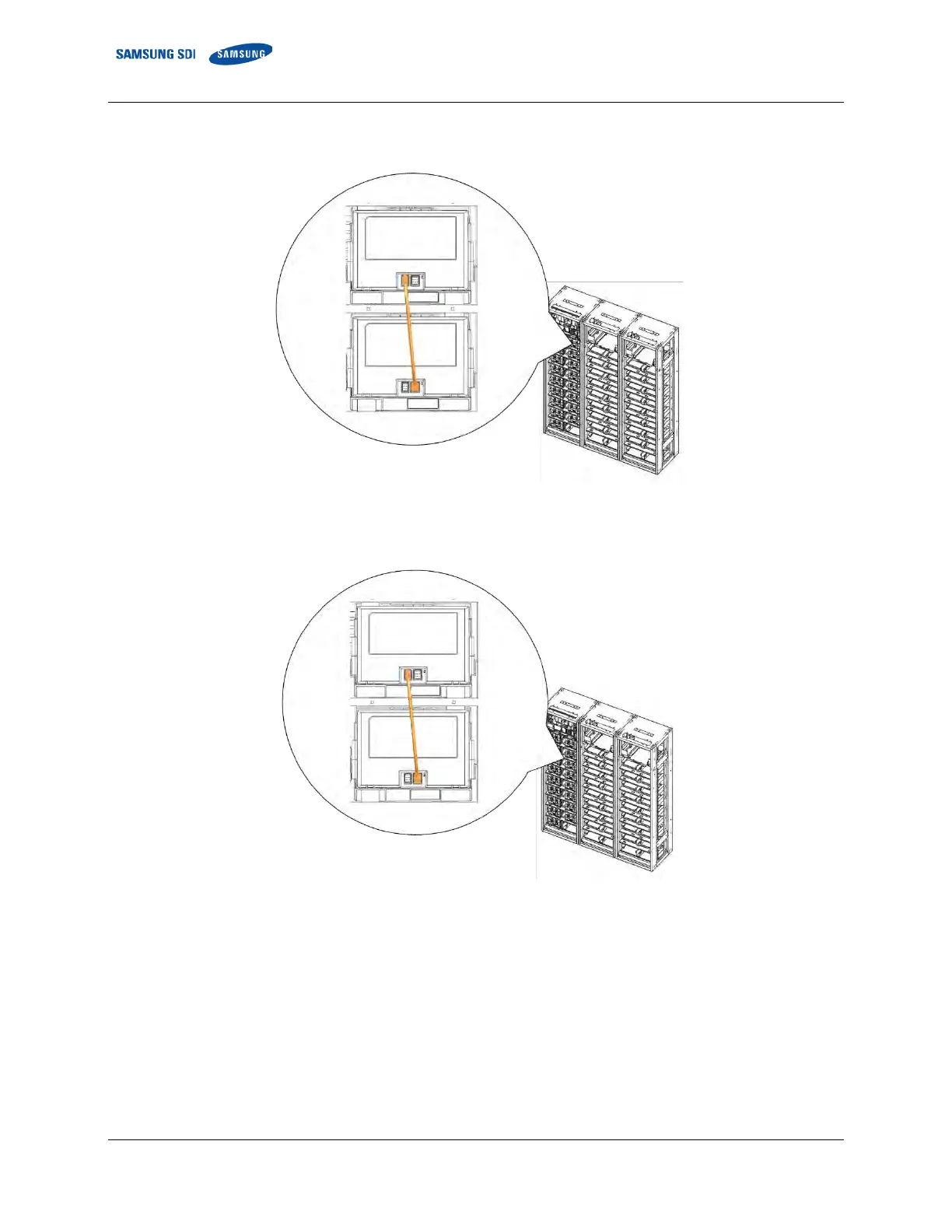

Figure 3-94: Module #1 to Module #2 Signal Cabling
3. Connect the signal cable “WIRE ASSY MODULE TO MODULE #1" from Module #2 “Left Connector” to
Module #3 “Right Connector.”
Figure 3-95: Module #2 to Module #3 Signal Cabling
