Disassembly and Reassembly
Samsung Electronics 3-11

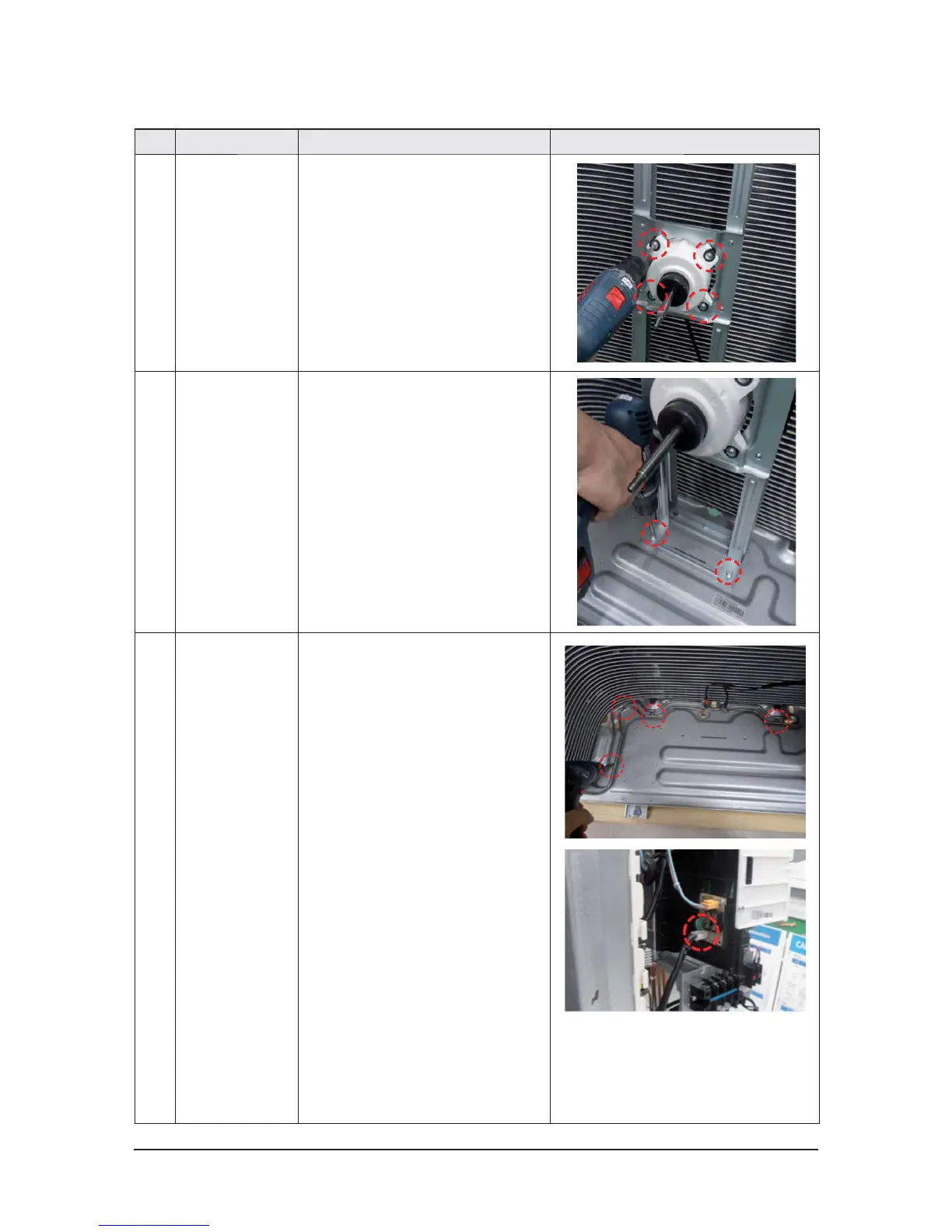

/P Parts Procedure Remark
9 Motor 1) Separate the Fan Propeller.
2) Unscrew and remove the 8 Motor
mounting
screws. (Use +Screw Driver)
3) Disconnect the Motor wire From
Ass'y Control Out.
10 Bracket Motor 1) Unscrew and remove 2 mounting
screws in Bracket Motor.
(Use +Screw Driver)
11 Heater 1) Unscrew and remove 4 screws on the
Base Out.
(Use +Screw Driver)
2) Disconnect the heater wire from the
Ass'y Control Out.
