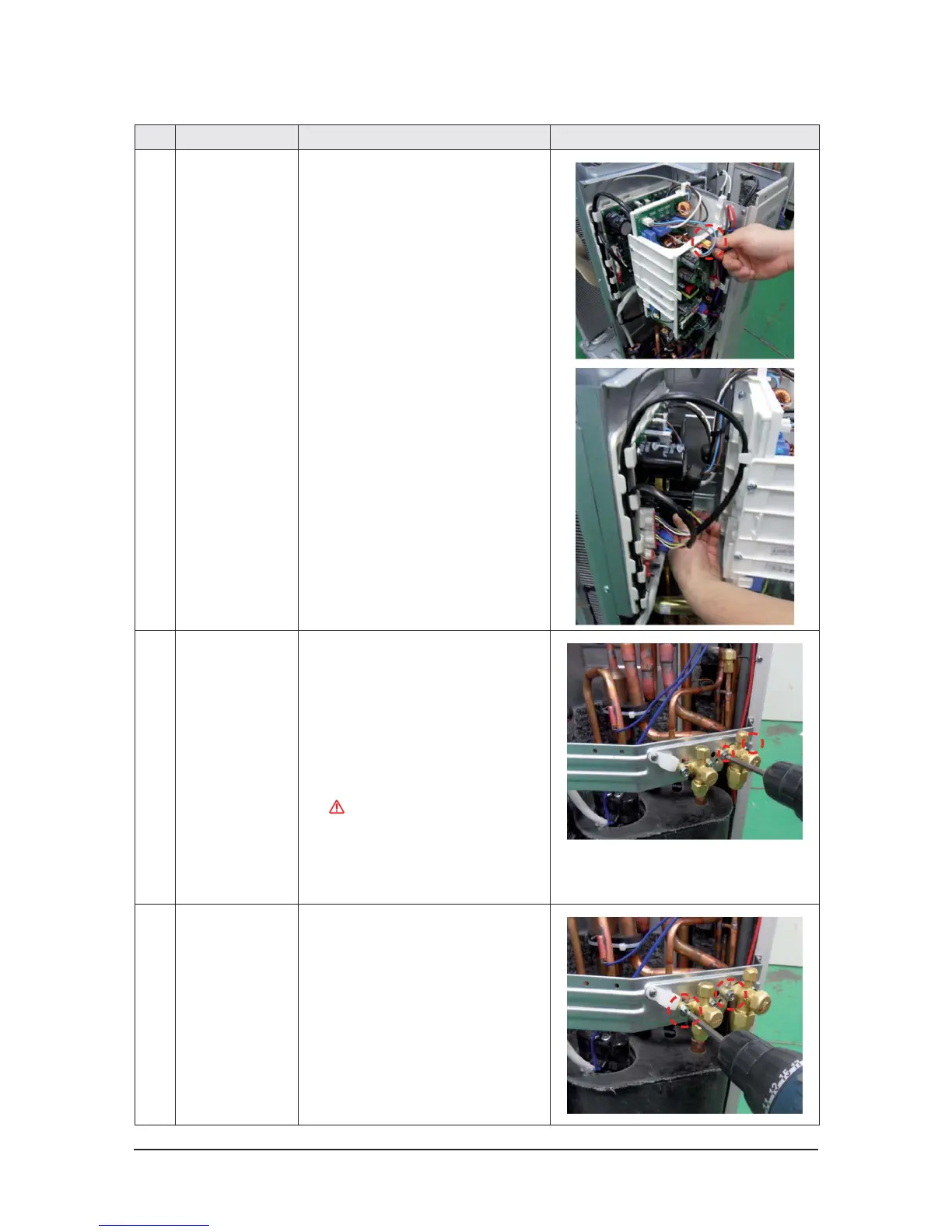

Disassembly and Reassembly
3-12 Samsung Electronics
/P Parts Procedure Remark
12 Control Out
1) Disconnect 4 Connecters From
Ass'y Control Out.
2) Unscrew and remove 1 mounting
screw in Control Out.
(Use +Screw Driver)
3) Separate Ass'y Control Out.
13 Assy 4way Valve
1) Purge the Coolant first.
2) Unscrew and remove 2 mounting
screws in Service Valve. (Use +Screw
Driver)
3) Separate the pipe from the
Entrance/Exit using a welder.
When removing the compressor,
Heat Exchanger, and Pipe, purge
the Coolant inside the Compressor
completely and remove the pipe
with a welding flame.
14 Assy EEV Valve
1) Unscrew and remove 2 mounting
screws in Service Valve.
(Use +Screw Driver)
2) Separate the pipe from the Entrance/
Exit using a welder.
To Next Page
